31 10 010 Removing and installing/replacing reinforcement plate
WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Observe SAFETY INSTRUCTIONS
for raising the vehicle
Driving without reinforcement plate is not permitted!
Driving without reinforcement plate is not permitted!

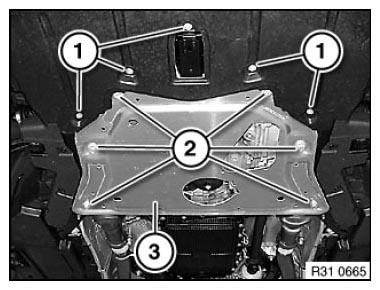

Release bolts (1) for assembly underside protection at front.
Unfasten screws (2).
Tightening torque 31 10 2AZ .
Remove reinforcement plate (3).
Installation note:
Replace screws (2).
