51 42 001 Replacing left or right rear door trim panel

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks:

Remove REAR DOOR TRIM PANEL
Remove FOOTWELL LIGHT

Unclip rocker switch for side window operation (1) 00 9 317 with special tool from door trim panel (2).

Disconnect plug connection and remove rocker switch.

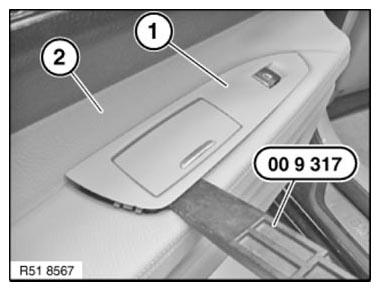

Fig 1: Removing Rocker Switch From Door Trim Panel Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Punch CONTOUR FOR SEAT MEMORY SWITCH INTO DOOR TRIM PANEL
