51 42... Punching contour for seat memory switch into rear door trim panel

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove REAR DOOR TRIM PANEL

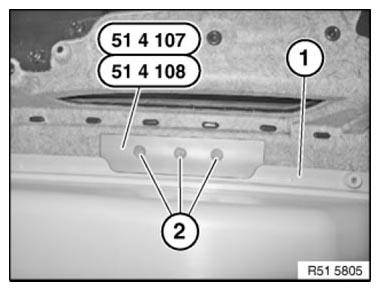

Position special tool 51 4 107 or 51 4 108 on the recess in the door trim panel storage compartment (1).

Mark cutouts (2).

Fig 1: Positioning Special Tool (51 4 107) Or (51 4 108) On Door Trim Panel Storage Compartment

G08472140

Courtesy of BMW OF NORTH AMERICA, INC.

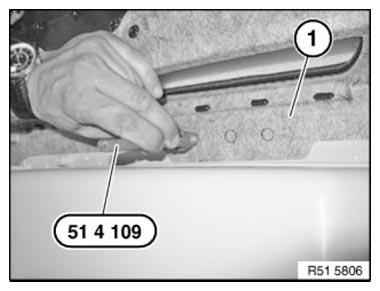

Use special tool 51 4 109 to punch holes at the previously marked points in the door trim panel (1).

Fig 2: Punching Marked Points On Door Trim Panel Using Special Tool (51 4 109)

G08472141

Courtesy of BMW OF NORTH AMERICA, INC.

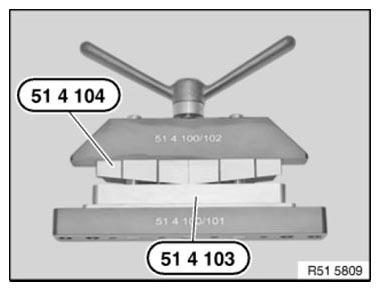

IMPORTANT: For punching work on F01/F02, special tools 51 4 103 and 51 4 104 must be used as the cutting equipment.

Fig 3: Identifying Punching Work Special Tools (51 4 104) And (51 4 103)

G08472142

Courtesy of BMW OF NORTH AMERICA, INC.

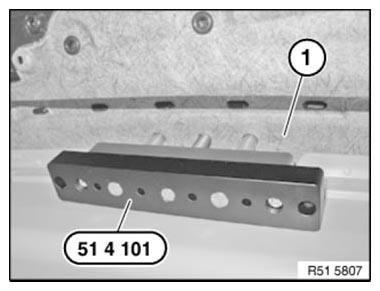

51 4 101 Slide special tool through holes stamped into door trim panel (1).

NOTE: Guide pins of punching tool are coded. Distortion is thus not possible.

Fig 4: Sliding Special Tool (51 4 101) Into Door Trim Panel

G08472143

Courtesy of BMW OF NORTH AMERICA, INC.

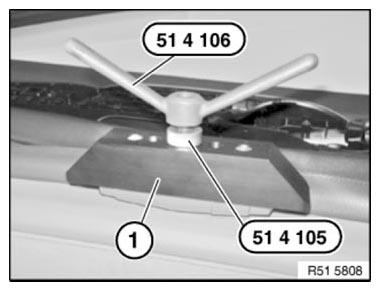

51 4 105 Mount special tools and on punching tool 51 4 106 (1).

Compress punching tool (1) via spindle.

Fig 5: Compressing Punching Tool

G08472144

Courtesy of BMW OF NORTH AMERICA, INC.

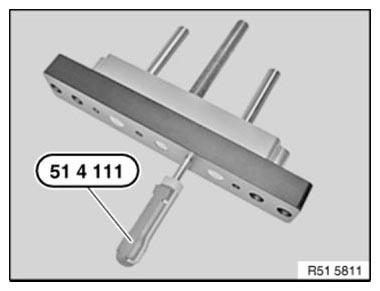

51 4 111 Press punching remnants with special tool from rear out of punching tool.

NOTE: This work step is necessary to prevent the cutting surfaces from being damaged during a renewed punching operation.

Fig 6: Pressing Punching Remnants Using Special Tool (51 4 111)

G08472145

Courtesy of BMW OF NORTH AMERICA, INC.
