51 42 000 Remove and install left or right rear door trim panel

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks:

Remove DECORATIVE STRIP ON DOOR TRIM PANEL of rear door.

Release screws (1).

Installation:

Tightening torque 51 42 1AZ .

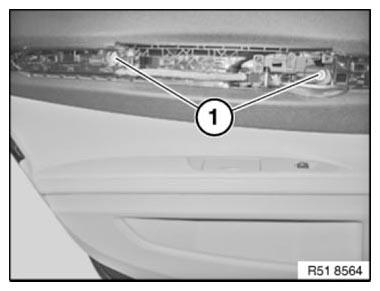

Fig 1: Identifying Rear Door Trim Panel Screws

G08472146

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip clips (1) 00 9 317 of door trim with special tool.

NOTE: Start unclipping at bottom. Damaged clips must be replaced.

Lift door trim panel out of holder.

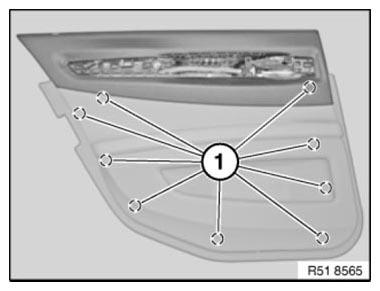

Fig 2: Identifying Rear Door Trim Panel Clips

G08472147

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage Bowden cable (1) for release lever first at counter support (2) and then at door lock (3).

Disconnect all plug connections and remove door trim panel.

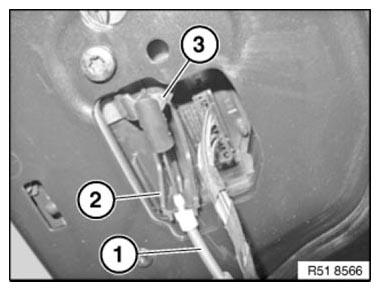

Fig 3: Identifying Bowden Cable, Counter Support And Door Lock

G08472148

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

After assembling the door trim panel proceed as follows:

Open side window
Lock with ignition key
Check for ease-of-movement on locking knob linkage
If necessary, align linkage
