63 31 020 Removing and installing/renewing footwell light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Follow instructions for HANDLING LIGHT BULBS (INTERIOR LIGHTING) .

Footwell, left/right:

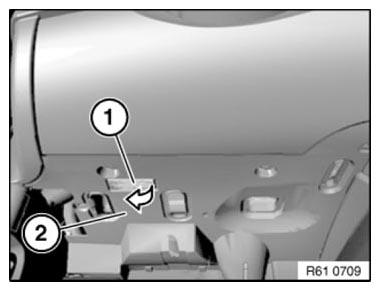

Lever footwell light (1) in direction of arrow out of trim panel (2).

Disconnect plug connection behind and remove footwell light (1).

Fig 1: Removing Footwell Light (Footwell, Left/Right)

Courtesy of BMW OF NORTH AMERICA, INC.

Door, left/right:

Lever footwell light (1) in direction of arrow out of door trim panel (2).

Disconnect plug connection behind and remove footwell light (1).

Replacement:

If necessary, remove bulb, note BULB TYPE
The footwell light in LED technology must be completely replaced!

Fig 2: Removing Footwell Light (Door, Left/Right)
Courtesy of BMW OF NORTH AMERICA, INC.

Turn bulb holder (1) in direction of arrow and pull out of footwell light (2).

Installation note:

Make sure bulb holder (1) is correctly seated and latched on footwell light (2).

Fig 3: Turning Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Pull bulb (1) in direction of arrow out of bulb holder (2).

Fig 4: Pulling Bulb From Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.
