51 46 018 Removing and installing/replacing trim panel for storage shelf with roller sunblind: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove BACKREST
Only with optional equipment Comfort seat:
- Remove HEAD RESTRAINTS
- Remove ARMREST
With rear air conditioning optional equipment only:
- Remove LUGGAGE COMPARTMENT PARTITION WALL
Remove TRIM FOR ROOF PILLAR AT REAR
In F01/02/03/04 only:
- Remove BELT FEED TRIM on left and right

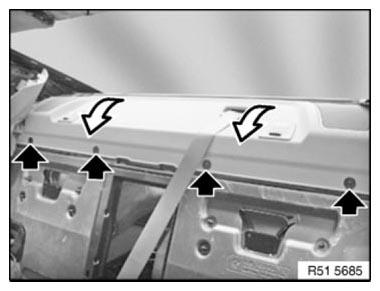

Release screws in luggage compartment.

Installation note:

Tightening torque 51 46 2AZ .

Fig 1: Identifying Luggage Compartment And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Graphics are only an example (The graphics used are from F01).

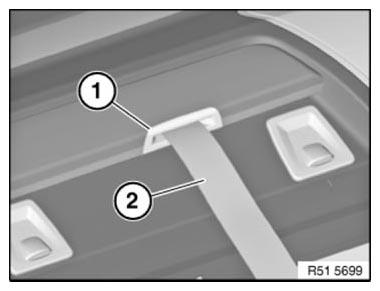

Lever out center seat belt finisher strip (1) with plastic wedge and feed out seat belt strap (2).

Fig 2: Identifying Centre Seat Belt Finisher Strip And Seat Belt Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Version with decorative strip only:

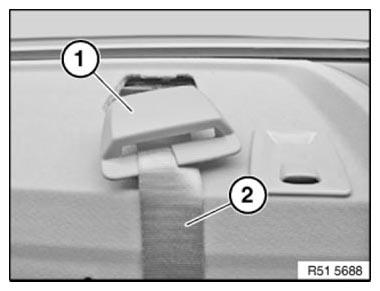

Unclip center seat belt finisher strip (1) from decorative trim and feed out seat belt strap (2).

Fig 3: Identifying Centre Seat Belt Finisher Strip And Seat Belt Strap

Courtesy of BMW OF NORTH AMERICA, INC.

In F01/02/03/04 only:

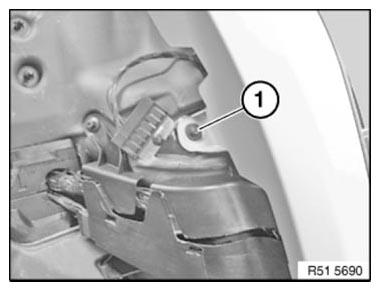

Release plastic nut (1) on C-pillar trim panel.

Fig 4: Identifying C-Pillar Trim Panel Plastic Nut
Courtesy of BMW OF NORTH AMERICA, INC.

In F01/02/03/04 only:

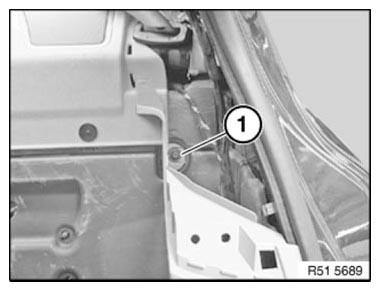

Release plastic nut (1) on C-pillar trim panel.
Disengage guide lug of C-pillar trim panel at top from storage shelf.

Fig 5: Identifying C-Pillar Trim Panel Plastic Nut
Courtesy of BMW OF NORTH AMERICA, INC.

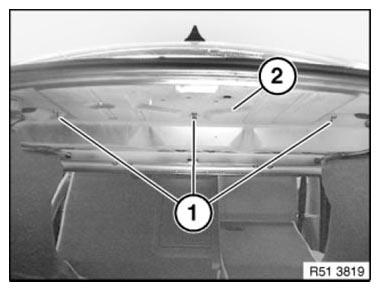

Release attachment sleeves and pull storage shelf forwards.

Unlock and disconnect underlying plug connections.

Fig 6: Pulling Storage Shelf

Courtesy of BMW OF NORTH AMERICA, INC.
