51 47 141 Removing and installing/replacing luggage compartment partition wall (with rear air conditioning)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
NOTE:
From 11/2010 (from vehicle identification number C634168
) the new version luggage compartment trim panels is installed that requires a modified dismantling sequence.
The new version considerable reduces the effort required for "Replacing rear air conditioning microfilter". It is possible to convert the old to the new version, sometimes absolutely necessary for replacement of single luggage compartment trim panels.
The new version considerable reduces the effort required for "Replacing rear air conditioning microfilter". It is possible to convert the old to the new version, sometimes absolutely necessary for replacement of single luggage compartment trim panels.
Version identification:

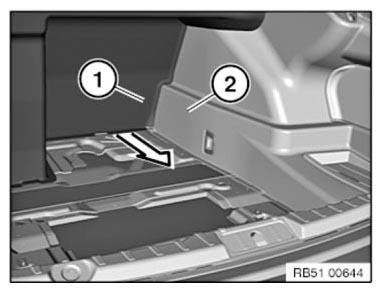

If the bottom area of luggage compartment partition wall (1) can be pulled out of luggage compartment-wheel arch panel (2) slightly to the rear, the new version is installed.
New version: Follow the work operations below.
Old version: Refer to REMOVING AND INSTALLING/REPLACING ALL LUGGAGE COMPARTMENT TRIM PANELS .

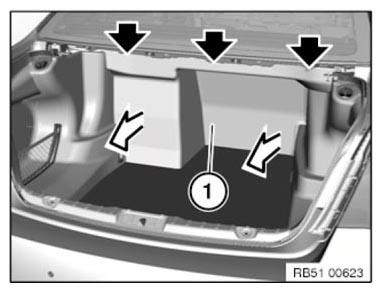

Lift out expanding rivets.
Remove luggage compartment partition wall (1).
Installation note:

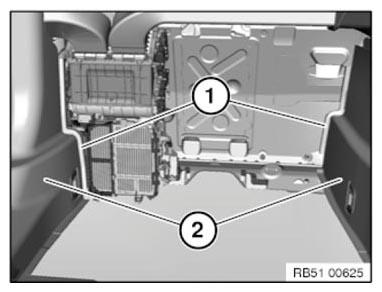

The trim panel for the luggage compartment partition wall must engage correctly in the guides (1) on the luggage compartment wheel arch panels (2).
