51 43 310 Removing and installing belt feed cover

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM PANEL FOR ROOF PILLAR
Remove rear seat. See BACKREST and REAR SEAT .

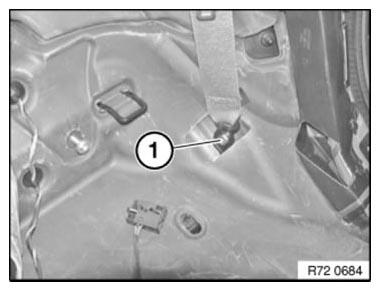

Release screw (1).

Tightening torque 72 11 22AZ .

Installation note:

End fitting is coded against incorrect assembly.

Fig 1: Identifying Belt Feed Cover Screw

Courtesy of BMW OF NORTH AMERICA, INC.

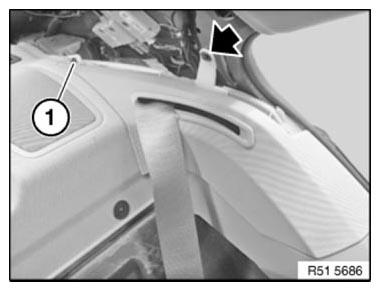

Release screw (1).

Release expanding rivet.

Remove cover.

Fig 2: Locating Expanding Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

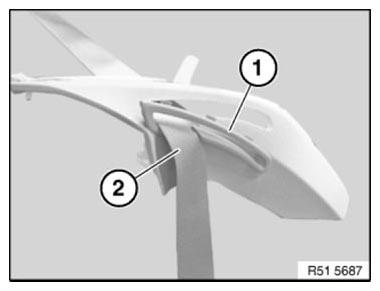

Lever out seat belt finisher strip (1) and feed out seat belt strap (2).

Fig 3: Identifying Seat Belt Finisher Strip And Seat Belt Strap

Courtesy of BMW OF NORTH AMERICA, INC.
