51 45 314 Removing and installing/replacing dashboard cover center section
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Risk of damage!
A hard disk is installed in the Car Information Computer (CIC).
Carry out mechanical work on the CIC and adjacent components with care.
Avoid subjecting the CIC to vibration/shocks.
Necessary preliminary tasks:
- Remove RADIO - A/C CONTROL PANEL
- Remove INTERIOR AERIAL FOR COMFORT ACCESS SYSTEM
- Remove RIGHT GLOVE BOX WITH HOUSING
- Remove trim panel for pedal mechanism. See TRIM PANEL (ECE ONLY) or TRIM PANEL (US ONLY) .
- Remove REAR CENTRE CONSOLE TRIM

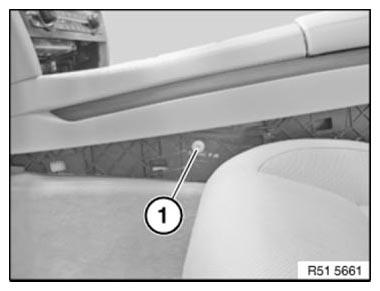

Release screws on tunnel (1) on left and right.
Tightening torque 51 16 7AZ .

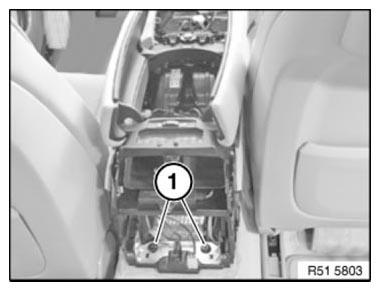

Release screws (1).
Tightening torque 51 16 4AZ .

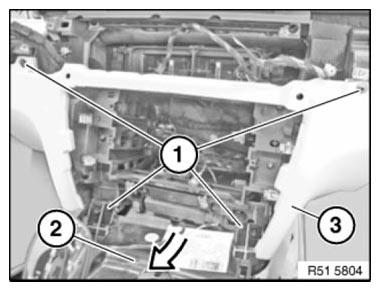

Release screws (1).
Slightly raise rear of center console (2) and pull to rear in direction of arrow.
Feed out trim (3).
Installation note:
Ensure cover (3) is correctly seated.
