51 45 184 Removing and installing/replacing trim panel for pedal assembly (ECE only)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

Release screw (3).

Fold back console trim (4).

Lower panel (2) slightly and disconnect plug connections behind.

Remove trim (2).

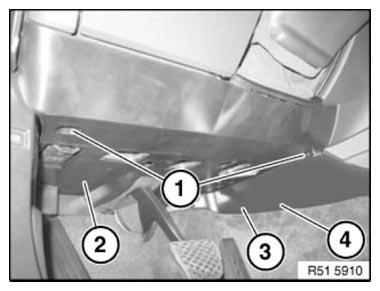

Fig 1: Identifying Back Console Trim, Lower Panel And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove FOOTWELL LIGHT
Remove SPEAKER FOR HANDS-FREE SYSTEM
