51 16 163 Removing and installing/replacing rear center console cover
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Move front seats forwards
- Remove SIDE TRIM PANELS ON CENTRE CONSOLE

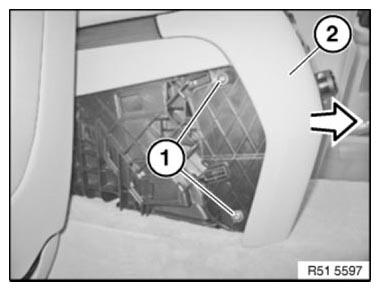

Release screws (1) on left and right sides.
Detach rear center console cover (2) in direction of arrow.
Unlock plug connections behind and disconnect.
Replacement:
- Remove fresh air grille in rear passenger compartment. See FRESH-AIR GRILLE (BASIC A/C SYSTEM) or FRESH-AIR GRILLE (HIGH A/C SYSTEM)
- Remove REAR A/C SYSTEM CONTROL PANEL
- Remove LOWER REAR CENTRE CONSOLE COVER
