51 16 366 Removing and installing/replacing right glovebox with housing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove UPPER INSTRUMENT PANEL STORAGE COMPARTMENT
Remove trim for instrument panel, bottom left. See TRIM (ECE ONLY) or TRIM (US ONLY) .
Remove USB INTERFACE CONNECTING SOCKET

F03 only:

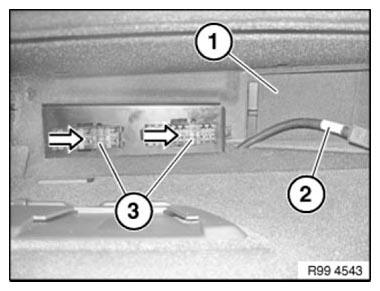

Unlock and open flap (1), to enable a subsequent removal of radio predisposition line.

Unlock fuse carrier (3) and press back.

Fig 1: Unlocking Fuse Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

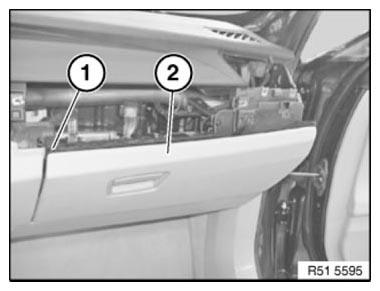

Release screw (1) on glovebox (2) at top.

Tightening torque 51 16 16AZ .

Fig 2: Identifying Glovebox And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

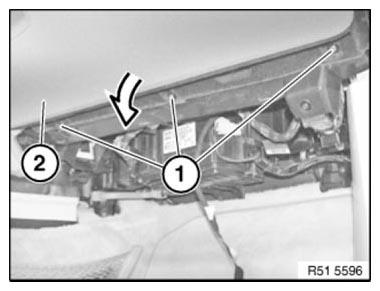

Release screws (1) on glovebox (2) at bottom.

Tightening torque 51 16 16AZ .

Remove glovebox (2) in direction of arrow.

Disconnect plug connection behind.

Replacement:

Remove GLOVEBOX LIGHT

Fig 3: Removing Glovebox
Courtesy of BMW OF NORTH AMERICA, INC.
