51 47 440 Removing and installing/replacing rear carpet on seat pan

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove BOTH FRONT SEATS
Remove REAR SEAT
Remove all entrance cover strips. See FRONT LEFT/RIGHT COVER STRIP and REAR LEFT/RIGHT COVER STRIP .
Remove top/bottom B-pillar trim. See TRIM FOR LEFT/RIGHT DOOR PILLAR (BOTTOM) and TRIM PANEL ON LEFT/RIGHT DOOR POST (TOP) .
Remove COMPLETE CENTRE CONSOLE

Feed out rear floor trim panel (1) towards rear/top.

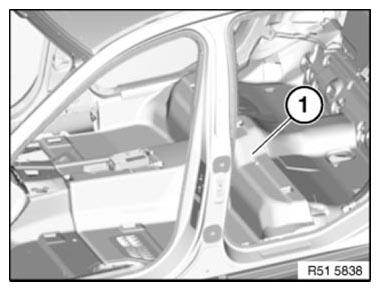

Fig 1: Identifying Rear Floor Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Openings (1) serve as alignment points when fitting the rear floor trim panel (2).

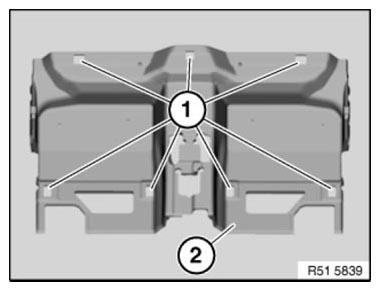

Fig 2: Identifying Rear Floor Trim Panel And Opening

Courtesy of BMW OF NORTH AMERICA, INC.
