51 47 000 Removing and installing/replacing front left or right entrance cover strip (inside)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Carefully lever out cover (1) using special tool 00 9 323 from front left entry sill (2).

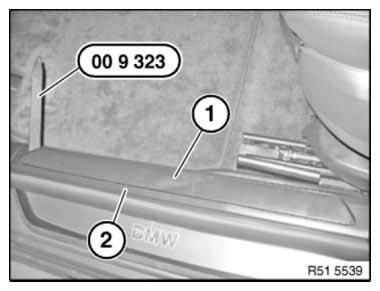

Fig 1: Removing Front Left Entry Sill Cover Using Special Tool (00 9 323)

Courtesy of BMW OF NORTH AMERICA, INC.

Release expander rivets with screw (1).

Release screw (2).

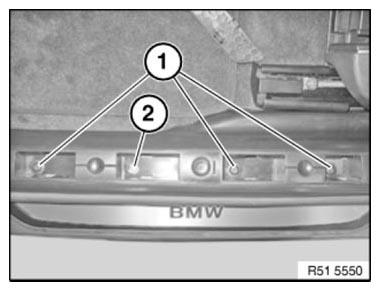

Fig 2: Identifying Expander Rivets And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully lever out front left entry sill (1) using special tool 00 9 318 .

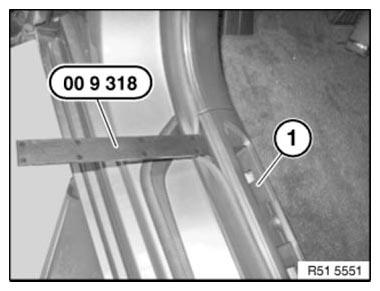

Fig 3: Removing Front Left Entry Sill Using Special Tool (00 9 318)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace expander rivets and retainers on entrance cover strip (1).

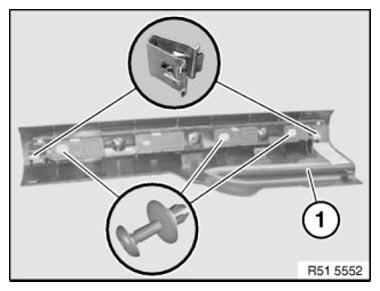

Fig 4: Identifying Entrance Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.
