51 43 150 Removing and installing or replacing trim for left or right door pillar (bottom)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT DOOR SILL COVER STRIP
Remove REAR DOOR SILL COVER STRIP

NOTE: Front seat is shown removed for purposes of clarity.

NOTE: Graphic shows F01.

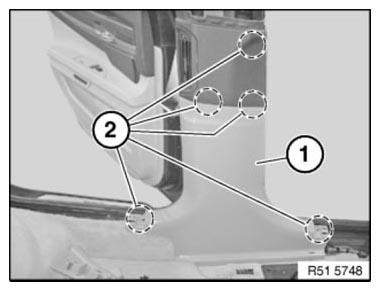

Unclip trim panel (1) at marked points (2).

If necessary, unlock associated plug connection and disconnect.

Fig 1: Identifying Marked Points On Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

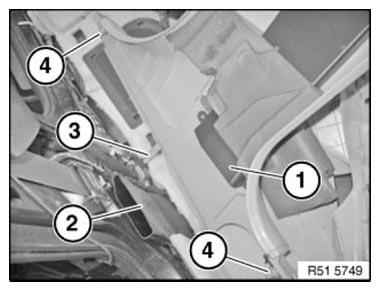

Air duct (1) must be correctly engaged in associated air duct (2).

Guide lug (3) must be correctly inserted in associated guide in floor pan.

All plastic clips (4) must be undamaged.

Fig 2: Identifying Air Duct, Guide Lug And Plastic Clips

Courtesy of BMW OF NORTH AMERICA, INC.
