51 16 165 Removing and installing complete center console

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove GEAR SELECTOR SWITCH
Remove CENTRE ARMREST STORAGE COMPARTMENT
Remove REAR CENTRE CONSOLE TRIM

IMPORTANT: Read and comply with notes on HANDLING WIRING HARNESSES and cables.

NOTE:

Remove ashtray insert
Remove storage compartment trim

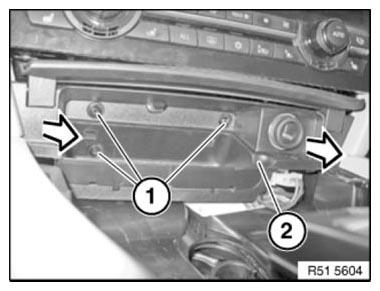

Release screws (1).

Tightening torque 51 16 8AZ .

Remove front storage tray (2) in direction of arrow.

Fig 1: Removing Front Storage Tray

G08471735

Courtesy of BMW OF NORTH AMERICA, INC.

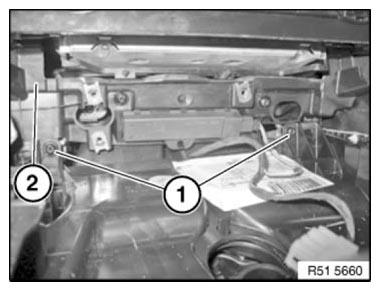

Release screws (1) on instrument panel (2).

Tightening torque 51 16 8AZ .

Fig 2: Identifying Instrument Panel And Screws

G08471736

Courtesy of BMW OF NORTH AMERICA, INC.

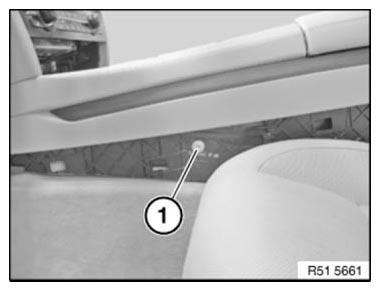

Release screws on tunnel (1) on left and right.

Tightening torque 51 16 7AZ .

Fig 3: Identifying Tunnel

G08471737

Courtesy of BMW OF NORTH AMERICA, INC.

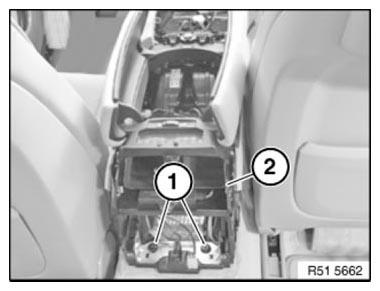

Release screws (1).

Tightening torque 51 16 4AZ .

Feed out center console (2) towards rear.

Unlock and disconnect plug connections and plug holders underneath.

Fig 4: Identifying Centre Console And Screws

G08471738

Courtesy of BMW OF NORTH AMERICA, INC.
