Cylinders 7 - 12

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove left CYLINDER HEAD COVER
Remove FAN COWL with electric fan
Remove BELT PULLEY for air conditioning system
Remove left CHAIN TENSIONER

Mount special tool 11 9 900 at position of chain tensioner.

Preload hexagon socket screw with special tool 00 9 250 to 0.6 Nm .

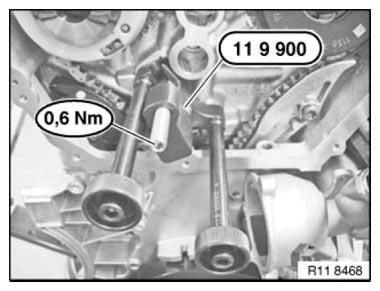

Fig 1: Mounting Special Tool 11 9 900 At Position Of Chain Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: When the engine is shut down, the inlet and exhaust camshaft adjuster is normally locked in its initial position.

The situation may arise in some individual cases where this initial position is not reached and the camshaft can continue to be rotated in the adjustment range of the adjuster.

In order to avoid incorrect timing adjustment, it is essential to check the locking of the adjuster and if necessary perform locking by rotating the camshafts.

Checking locking of inlet and exhaust adjustment units in initial position:

Gripping hexagon head (2) of camshafts with a fork wrench (1), carefully try to rotate camshafts against direction of rotation.

The inlet and exhaust adjustment units are locked in the initial position when the camshafts are non-positively connected to the adjustment units.

Fig 2: Rotating Camshafts Using Fork Wrench

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: If the inlet or exhaust camshaft adjuster of the camshafts "can not" be locked as described, the adjuster is faulty and must be replaced.

NOTE: If the camshafts are at the TDC firing position for cylinder 1, the labelling on the exhaust camshaft (1 and 2) can be read from above.

A = exhaust camshaft.

712 = cylinder 7 to 12.

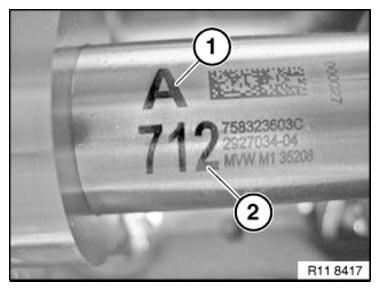

Fig 3: Identifying Exhaust Camshaft Labelling

Courtesy of BMW OF NORTH AMERICA, INC.

With 1st cylinder in firing TDC position, cams of exhaust camshaft (1) of the 1st cylinder point inward at an angle (see arrow in illustration).

Fig 4: Identifying Cams Of Exhaust Camshaft Of 1st Cylinder Point Inward At An Angle

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If the camshafts are at the TDC firing position for cylinder 1, the labelling on the intake camshaft (1 and 2) can be read from above.

E= intake camshaft.

712 = cylinder 7 to 12.

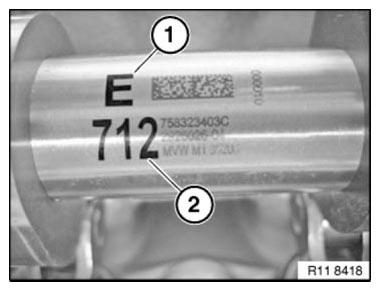

Fig 5: Identifying Intake Camshaft Labelling

Courtesy of BMW OF NORTH AMERICA, INC.

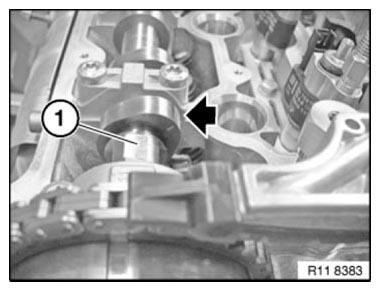

With 1st cylinder in firing TDC position, cams of intake camshaft (1) of the 1st cylinder point inward at an angle (see arrow in illustration).

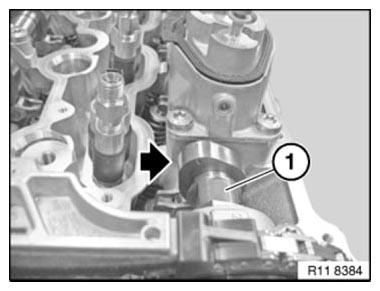

Fig 6: Identifying Cams Of Intake Camshaft Of 1st Cylinder Point Inward At An Angle

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Lay auxiliary water pump holder to one side.

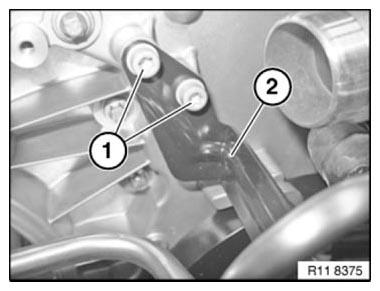

Fig 7: Identifying Auxiliary Water Pump Holder With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

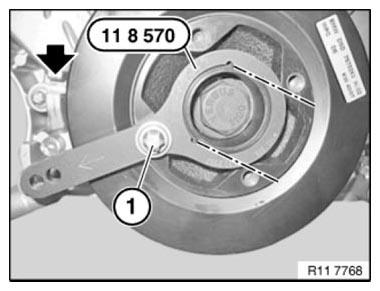

Position special tool 11 8 570 with the mounting flats on the vibration damper at the TDC mark.

Secure special tool 11 8 570 with a screw (1).

Fig 8: Securing Special Tool 11 8 570 With Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Crank engine at the central bolt in direction of engine rotation.

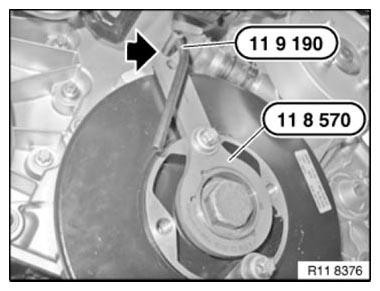

Use special tools 11 8 570 and 11 9 190 to insert the vibration damper in the upper bore hole.

Fig 9: Identifying Special Tools 11 9 190 And 11 8 570

Courtesy of BMW OF NORTH AMERICA, INC.

The crankshaft is correctly positioned when the special tool 11 8 570 is locked with 11 9 190 in the groove (see arrow in illustration).

The crankshaft is locked in the Cylinder 1 firing TDC position .

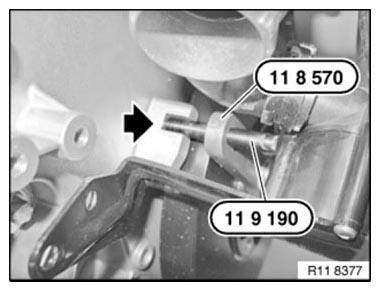

Fig 10: Locking Crankshaft In Correct Position Using Special Tool 11 8 570 And 11 9 190

Courtesy of BMW OF NORTH AMERICA, INC.

Fit special tool 11 9 893 on intake camshaft and check timing adjustment.

NOTE: Timing is correctly adjusted when special tool 11 9 893 rests without a gap on cylinder head.

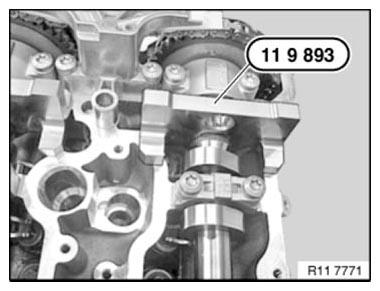

Fig 11: Fitting Special Tool 11 9 893 On Intake Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Place special tool 11 9 893 on the exhaust camshaft and test timing adjustment.

NOTE: Timing is correctly adjusted if special tool 11 9 893 rests on the cylinder head without any gaps.

If necessary, adjust camshaft TIMING on left side.

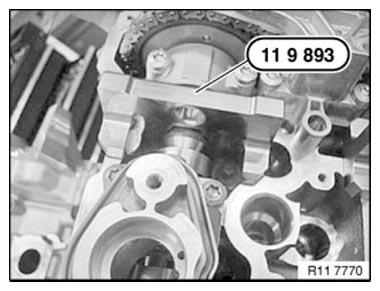

Fig 12: Fitting Special Tool 11 9 893 On Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Remove all special tools.

Assemble engine.
