11 31 094 Removing hydraulic chain tensioner for timing chains on left side (N74)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Chain tensioner is pre-tensioned.
Release lock pin only in installed state.

Risk of injury!

IMPORTANT: Risk of damage!

The engine must not be cranked when the chain tensioner is removed.

The timing chain may jump.

Necessary preliminary tasks:

Remove TIMING CASE COVER at top left

Crank engine back at central bolt (1) against direction of engine rotation by approx. 90°.

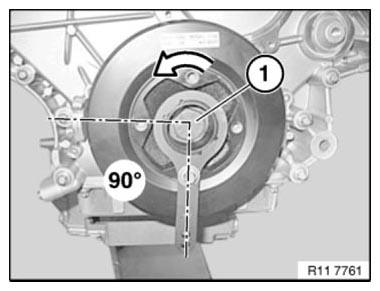

Fig 1: Turning Central Bolt Approx. 90° Against Direction Of Engine Rotation

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: The timing chain on the chain tensioner becomes the tight end on cranking back.

Do not crank engine without chain tensioner or special tool 11 9 900 .

Piston (1) of chain tensioner must be pressed in against oil pressure in housing (see arrow in illustration).

NOTE: Graphics show N63.

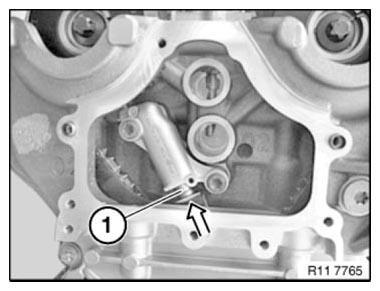

Fig 2: Pressing Chain Tensioner Piston

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 11 4 120 or 3.5 mm drill in drill hole.

WARNING: Piston of chain tensioner is now secured.

Release screws (1).

Tightening torque: see 7AZ in 11 31 CAMSHAFT

Remove chain tensioner (2).

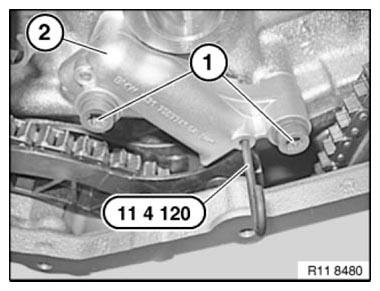

Fig 3: Removing Chain Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of injury!

Chain tensioner is pre-tensioned.

Chain tensioner arrangement:

Piston
Expansion element
Compression spring
Housing

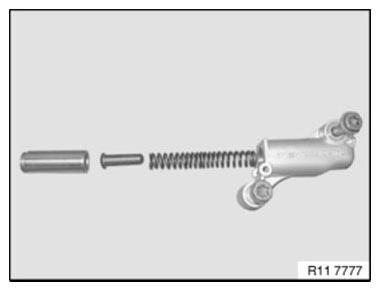

Fig 4: Identifying Chain Tensioner Components

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace all gaskets and sealing rings .

Assemble engine.
