51 47 440 Removing and installing/replacing rear carpet on seat pan

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove both front seats. See FRONT SEAT, DRIVER'S SIDE and FRONT SEAT, PASSENGER SIDE .
Remove REAR SEAT
Remove all entrance cover strips. See FRONT ENTRANCE COVER STRIPS and REAR ENTRANCE COVER STRIPS .
Remove top/bottom B-pillar trim. See TOP B-PILLAR TRIM and BOTTOM B-PILLAR TRIM .
Remove COMPLETE CENTRE CONSOLE

Feed out rear floor trim panel (1) towards rear/top.

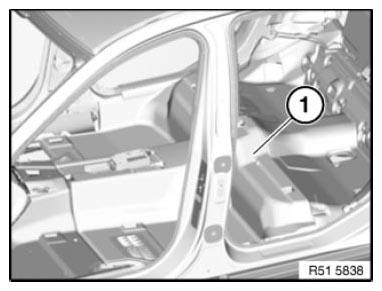

Fig 1: Identifying Rear Floor Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Openings (1) serve as alignment points when fitting the rear floor trim panel (2).

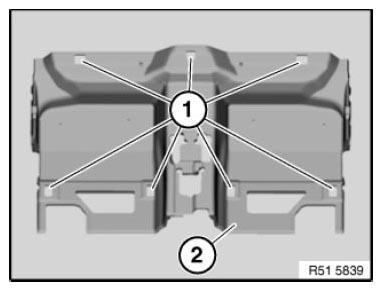

Fig 2: Identifying Rear Floor Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
