51 47 030 Removing and installing/replacing rear left or right door sill cover strip (inside)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Carefully lever out cover (1) using special tool 00 9 323 from door sill cover strip on rear left (2).

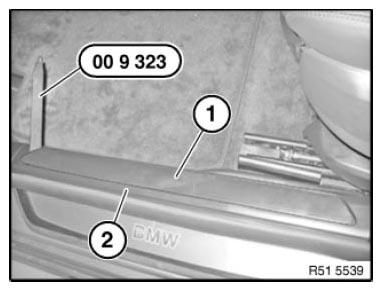

Fig 1: Removing Cover From Front Left Entry Sill Using Special Tool (00 9 323)

Courtesy of BMW OF NORTH AMERICA, INC.

Release expanding rivets with screw (1).

Release screw (2).

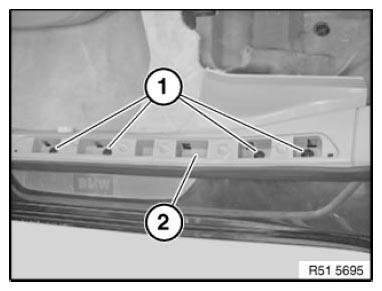

Fig 2: Identifying Expanding Rivets With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully lever out rear left door sill cover strip (1) with special tool 00 9 318 .

Installation note:

Make sure door sill cover strip is cleanly seated in gasket

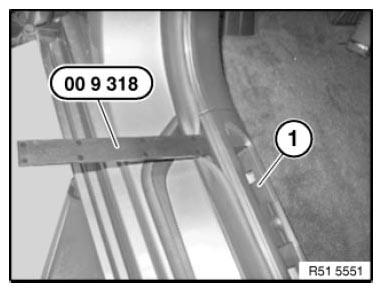

Fig 3: Removing Front Left Entry Sill Using Special Tool (00 9 318)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

If necessary, replace expanding rivets and clamps on door sill cover strip (1).

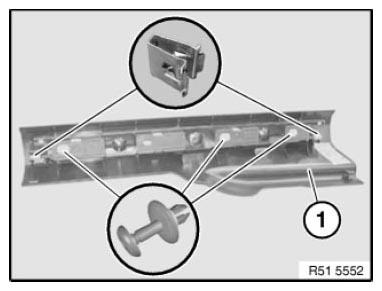

Fig 4: Identifying Entrance Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.
