51 47 000 Removing and installing/replacing front left or right entrance cover strip (inside)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Carefully lever out cover (1) using special tool 00 9 323 from front left entry sill (2).

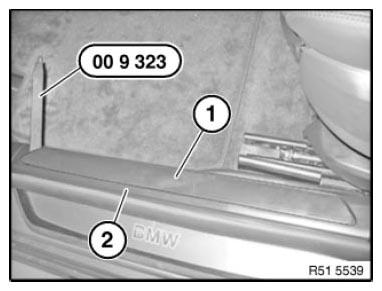

Fig 1: Removing Cover From Front Left Entry Sill Using Special Tool (00 9 323)

Courtesy of BMW OF NORTH AMERICA, INC.

Release expander rivets with screw (1).

Release screw (2).

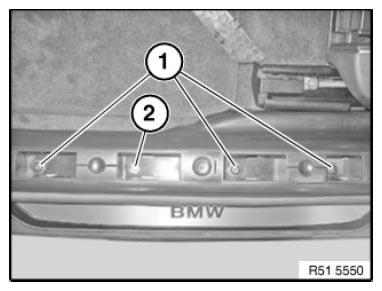

Fig 2: Identifying Expander Rivets And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully lever out front left entry sill (1) using special tool 00 9 318 .

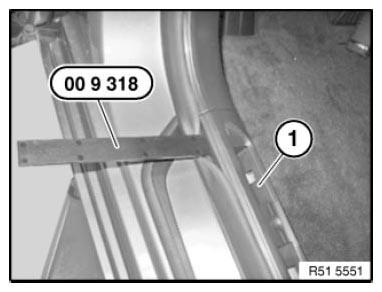

Fig 3: Removing Front Left Entry Sill Using Special Tool (00 9 318)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace expander rivets and retainers on entrance cover strip (1).

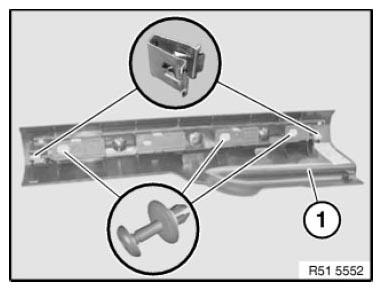

Fig 4: Identifying Entrance Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.
