51 16 240 Removing and installing/replacing rear storage box

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks

Remove SIDE CARPET FROM STORAGE COMPARTMENT on left and right.
Remove CENTRE CONSOLE COVER (GEAR SELECTOR SWITCH) .
Remove AV CONNECTING SOCKET COVER .
Version with rear-cabin monitor: Remove COVER FROM REAR CABIN MONITOR AT FRONT .
Version with eject box:

Remove EJECT BOX

Version without rear cabin monitor:

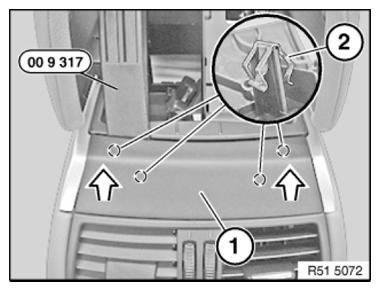

Lever cover (1) out of center console in the direction of arrow with special tool 00 9 317 .

Installation note:

Replace faulty clamps (2).

Fig 1: Removing Centre Console Cover Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

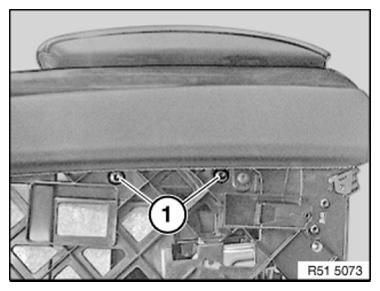

Release left and right screws (1).

Fig 2: Identifying Rear Storage Box Screws

Courtesy of BMW OF NORTH AMERICA, INC.

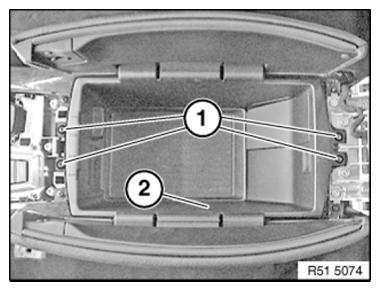

Release screws (1) and raise storage box (2).

If necessary, disconnect plug connection for STORAGE BOX LED .

Remove storage box (2).

Fig 3: Identifying Storage Box And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove CENTRE ARMREST FROM STORAGE COMPARTMENT on left and right

If necessary, remove STORAGE BOX LED .

Replacement before 05/2011:

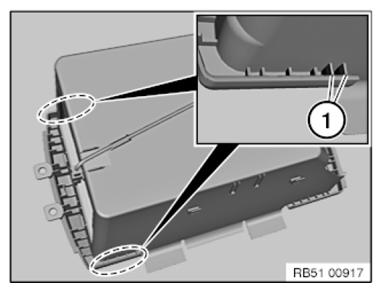

Break out ribs (1) with pliers.

Fig 4: Identifying Rear Storage Box Ribs

Courtesy of BMW OF NORTH AMERICA, INC.
