51 16 176 Removing and installing/replacing center armrest on storage compartment on left or right

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 322

Necessary preliminary tasks

Remove STORAGE BOX .

If necessary, release dummy plate (2) at catches (3) and remove from storage box (1).

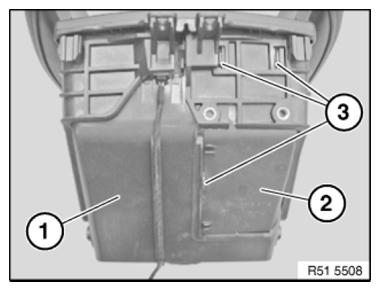

Fig 1: Identifying Storage Box, Dummy Plate And Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Release retaining lugs (2) with special tool 00 9 322 .

Feed center armrest (1) in direction of arrow out of storage box (4).

Installation:

Retaining lugs (2) and guides (3) must not be damaged.

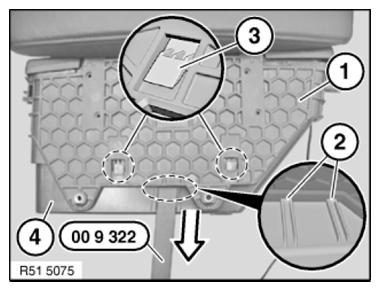

Fig 2: Removing Centre Armrest From Storage Box Using Special Tool (00 9 322)

Courtesy of BMW OF NORTH AMERICA, INC.
