51 16 160 Removing and installing/replacing center console cover (gear selector switch)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 327

IMPORTANT: Risk of damage!
Before dismantling it is imperative to note whether the version of the installed controller is before or after 10/2009!

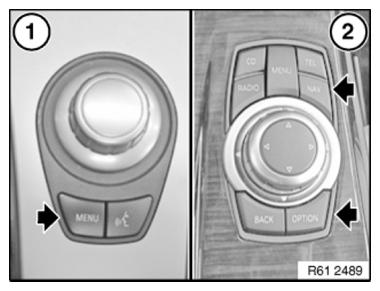

Fig 1: Locating Controller Buttons

Courtesy of BMW OF NORTH AMERICA, INC.

Before 10/2009: Controller has buttons at only bottom .
After 10/2009: Controller has buttons at bottom and top .

For version (1) up to 10/2009 (without M models) the controller button must be removed as preliminary work for cover center console.

IMPORTANT: Risk of damage!
There is a risk of damage when lifting the cover out of the side area (3)!
Place special tool 00 9 327 directly at clamps (2)!

Tape off cover (1) and center console in working area.

Lift cover (1) out of the center console with special tool 00 9 327 beginning in the front area.

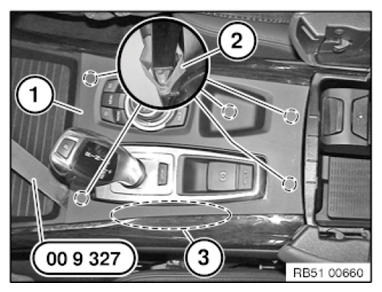

Fig 2: Lifting Cover Out Of Centre Console Using Special Tool (00 9 327)

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Risk of breaking the cover!

Then carefully lift out cover (1) in side area (3).

Lever out the remainder of the clamp (2)and remove the cover (1).

Installation note:

Retaining clips (1) and (2) must not be damaged or missing.

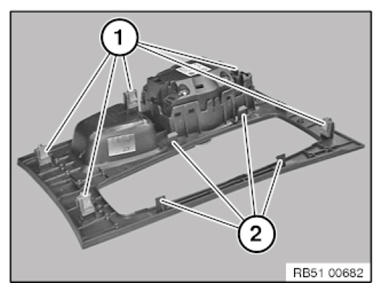

Fig 3: Identifying Centre Console Cover Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Only for vehicles with production date from 10/2009 (without M models):

MODIFY CONTROLLER
