32 13 060 Removing and installing (replacing) power steering gear (M3)

Necessary preliminary tasks

• Draw off and dispose of hydraulic fluid from fluid reservoir
• Remove REINFORCEMENT PLATE
• Remove both TIE ROD ENDS FROM SWIVEL BEARING
• Replacement only: Remove both TIE ROD ENDS FROM TIE ROD
• Remove LOWER STEERING SPINDLE FROM POWER STEERING GEAR

Release nut (1) for return line (2).

Installation:

Replace self-locking nut.

Fig 1: Identifying Return Line With Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nut (1) and bolts (2).

Disconnect pressure line (3) from front axle carrier holder.

Installation:

Replace self-locking nut.

Fig 2: Identifying Pressure Line Of Front Axle Carrier Holder With Nut And Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Fold both holders (2) downwards.

Installation:

Fig 3: Identifying Holder Screws

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove heat shield from power steering gear.

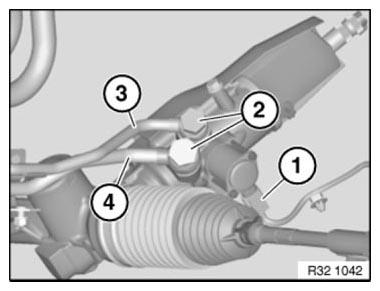

Disconnect plug connection (1) on Servotronic electrohydraulic converter.

Release banjo bolts (2).

Disconnect pressure line (3) and return line (4) from power steering gear.

Installation:

Replace all sealing rings.

Make sure hydraulic lines are laid without tension and with sufficient spacing to adjoining components.

Fig 4: Identifying Plug Connection, Pressure Line And Return Line

Courtesy of BMW OF NORTH AMERICA, INC.

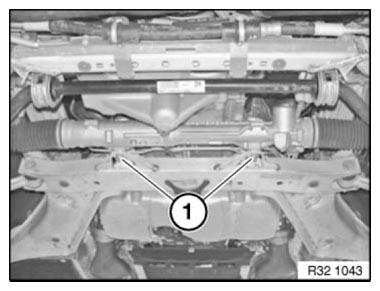

Release nuts and remove screws (1) towards bottom.

Remove power steering gear towards front.

Installation:

Replace screws and nuts.

Tightening torque 32 00 1AZ .

Fig 5: Identifying Power Steering Gear With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

• Fill and bleed HYDRAULIC SYSTEM
• Check pipe connections for leaks
• Perform chassis alignment check  See 3200150 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION  or 3200155 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD
• Carry out STEERING ANGLE SENSOR ADJUSTMENT
