31 10 010 Removing and installing/replacing reinforcement plate (M3)
WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Observe SAFETY INSTRUCTIONS
for raising the vehicle
Driving without reinforcement plate is not permitted!
Driving without reinforcement plate is not permitted!
Necessary preliminary tasks
- Remove FRONT UNDERBODY PROTECTION

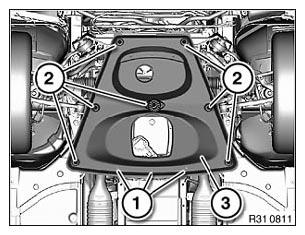

Release screws (1).
Release screws (2) and remove reinforcement plate (3).
Installation:
Replace screws (2).
Tightening torque 31 10 3AZ .
