63 12 005 Removing and installing/replacing left headlight

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove front wheel arch cover (front section). Refer to 51 71 040 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER .

Remove bulb holder for parking light. Refer to 63 99 132 Replacing bulb for side marker lamp, front left .

Disconnect plug connections (1).

Unscrew bolt (2).

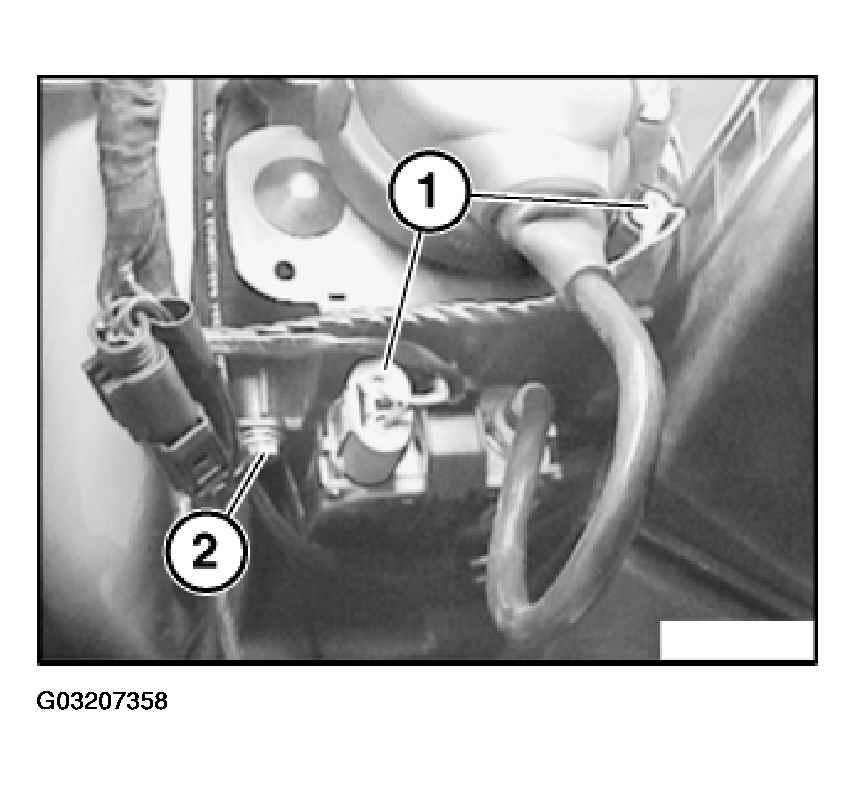

Fig 1: Disconnecting Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1) up to marking.

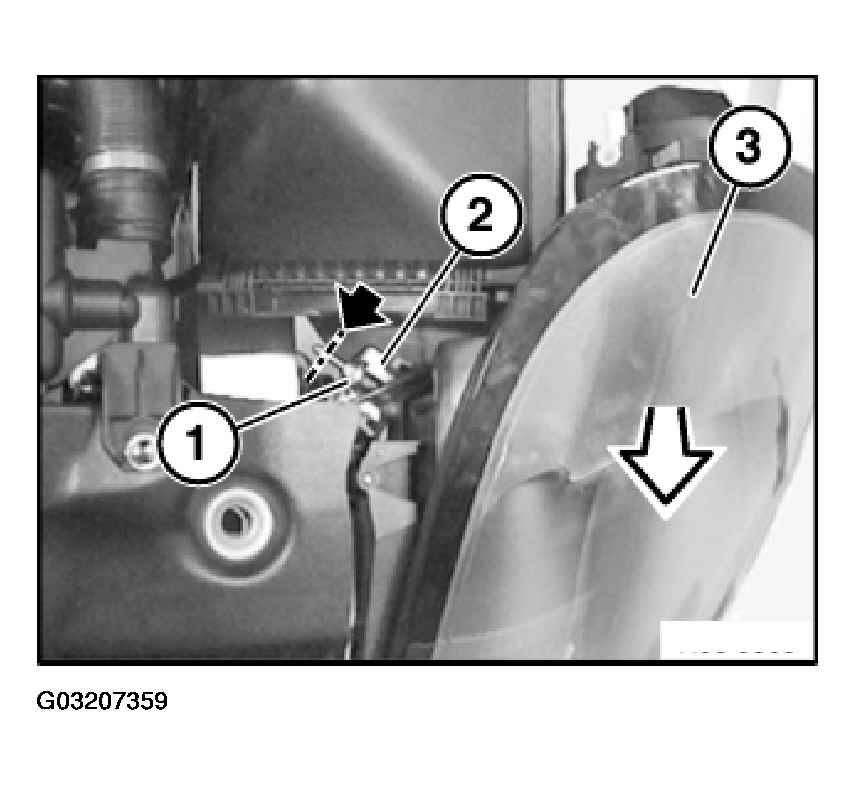

Fig 2: Removing Headlamp

Courtesy of BMW OF NORTH AMERICA, INC.

Slide unlocking mechanism (2) as far as it will go.

Remove headlamp (3) in direction of arrow.

Installation:

Adjust headlamp. Refer to 63 10 004 Adjusting headlights .

Replacement:

Detach headlamp (1) from headlamp holder (2).

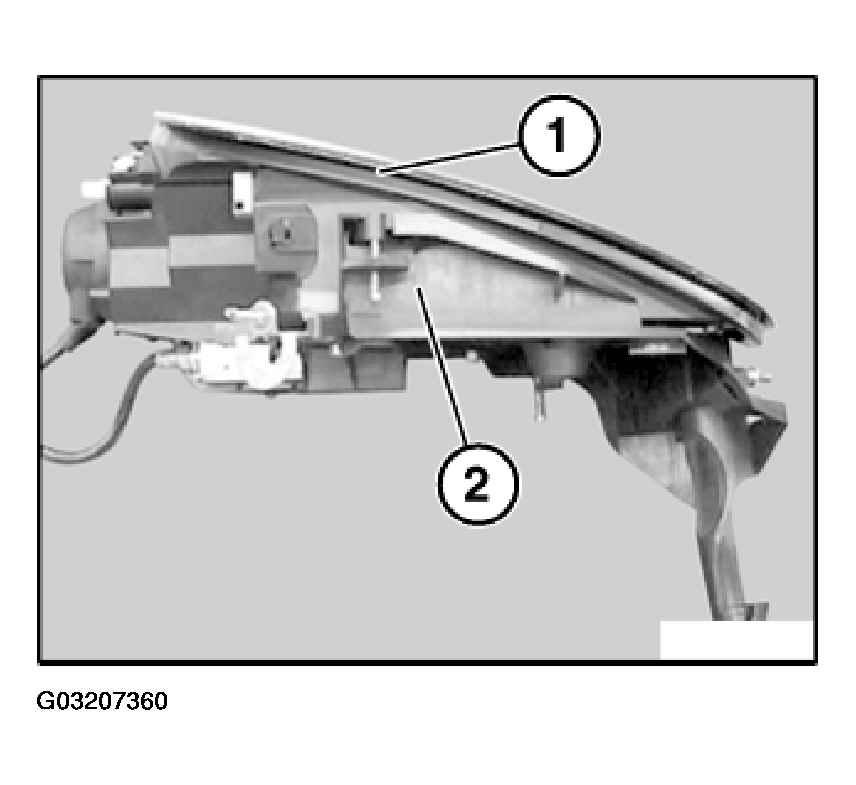

Fig 3: Detaching Headlamp From Headlamp Holder

Courtesy of BMW OF NORTH AMERICA, INC.

If headlamp holder is damaged:

Remove jet nozzle of headlight cleaning system. Refer to 61 67 045 REMOVING AND INSTALLING/REPLACING SPRAY NOZZLES FOR LEFT OR RIGHT HEADLIGHT CLEANING SYSTEM .

Unclip Bowden cable (1).

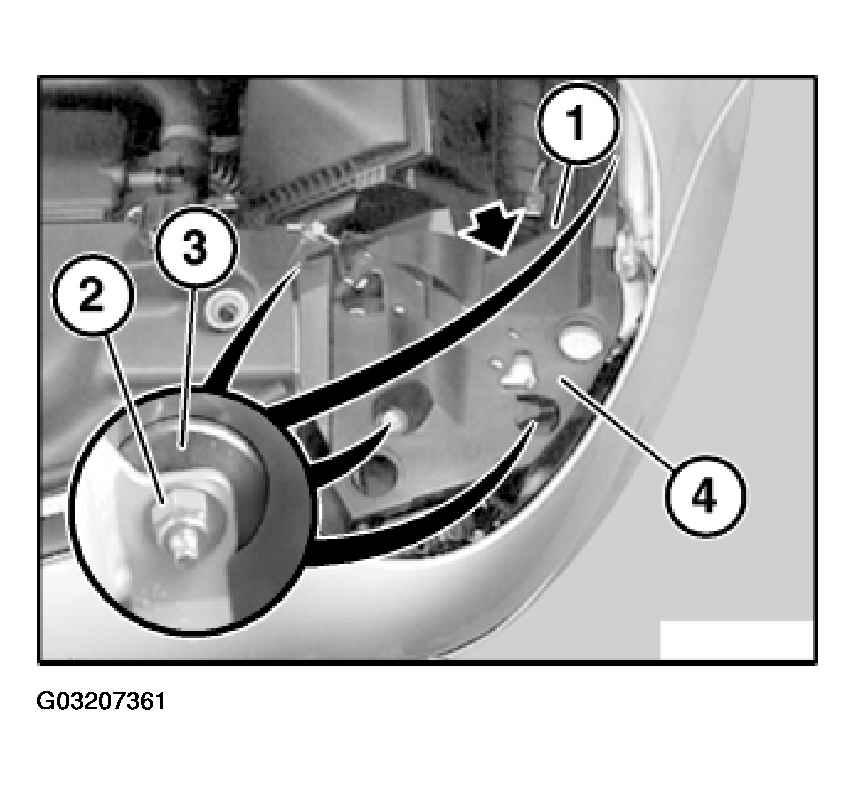

Fig 4: Removing Headlamp Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (2).

Installation:

Replace nuts (2).

Using knurled nuts (3), align headlamp holder (4) to body.

Remove headlamp holder (4) upwards.

Unscrew nuts (1).

Remove retaining fixture (2).

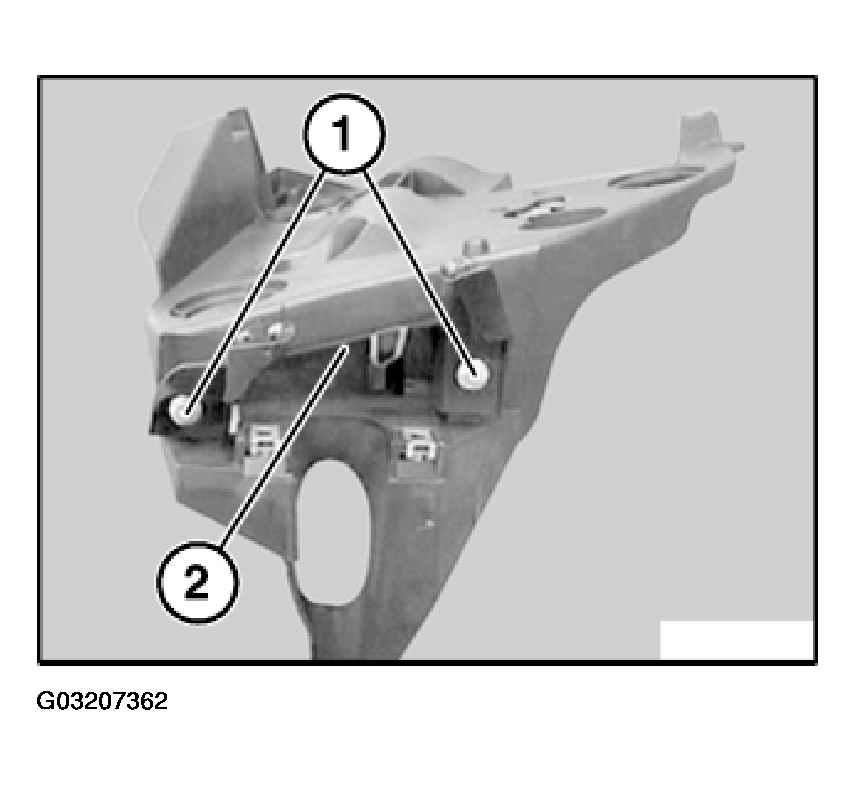

Fig 5: Removing Retaining Fixture

Courtesy of BMW OF NORTH AMERICA, INC.
