61 67 045 Removing and installing/replacing spray nozzles for left or right headlight cleaning system

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove front left or right turn signal flasher. Refer to 63 13 150 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT TURN SIGNAL FLASHER .

Remove left or right headlight. Refer to 63 12 005 REMOVING AND INSTALLING/REPLACING LEFT HEADLIGHT .

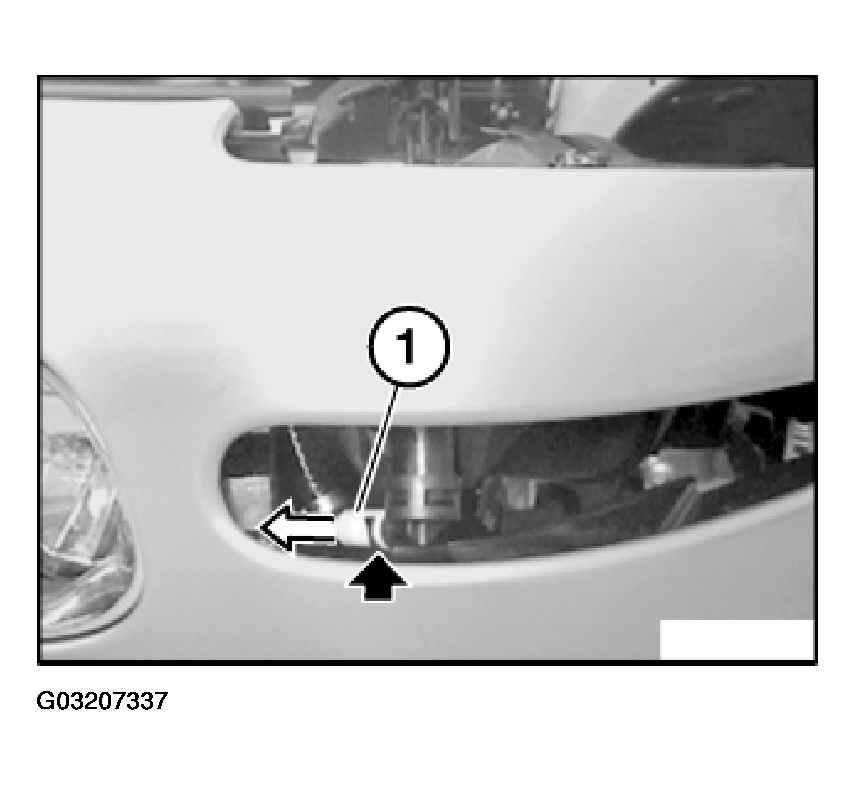

Unlock connector (1) and detach from spray nozzle.

Fig 1: Detaching Connector From Spray Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.

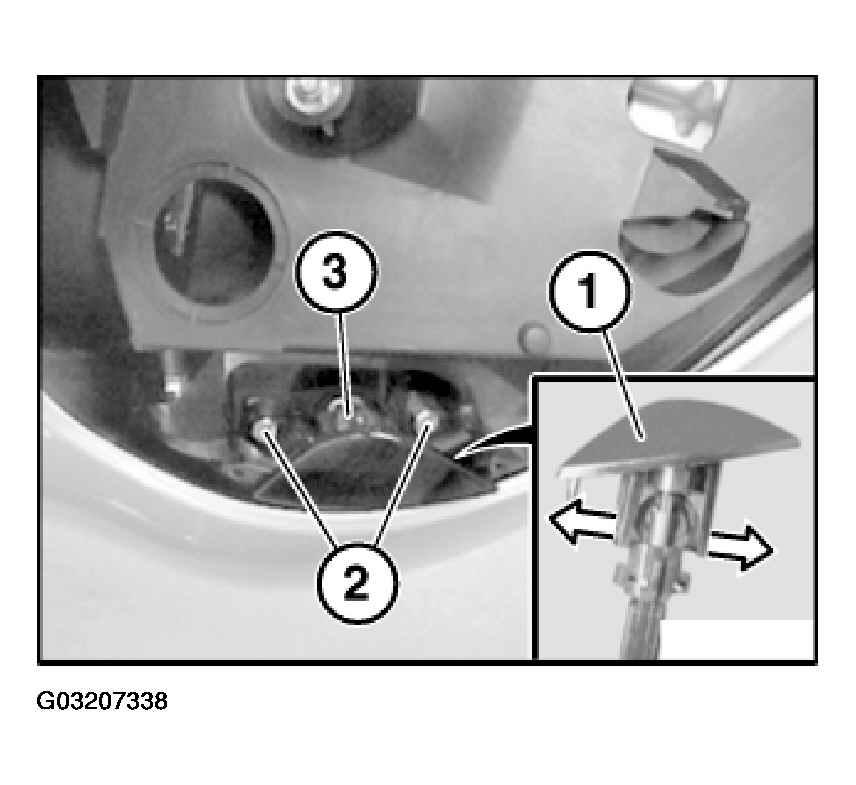

Unclip trim (1) and remove from spray nozzle.

Loosen screws (2).

Pull out spray nozzle (3) towards top.

Fig 2: Removing Trim From Spray Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

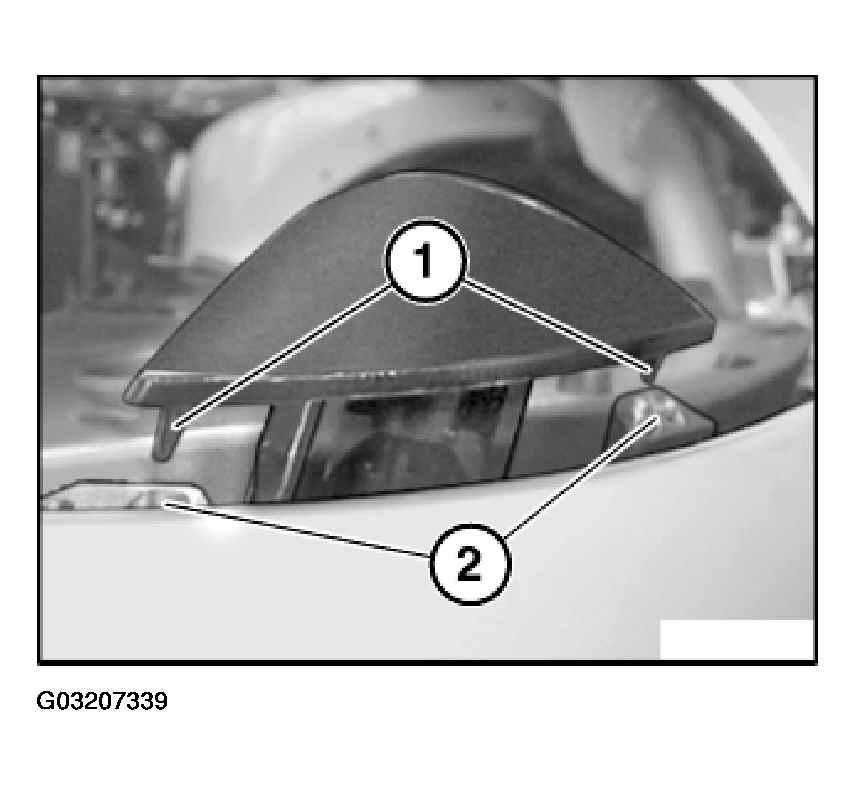

Journals (1) must be located in guides (2).

Check contact points.

Fig 3: Locating Journals In Guides

Courtesy of BMW OF NORTH AMERICA, INC.
