63 99 132 Replacing bulb for side marker lamp, front left

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect plug connection (1).

Turn bulb holder (2) through approx. 45° in direction of arrow and remove.

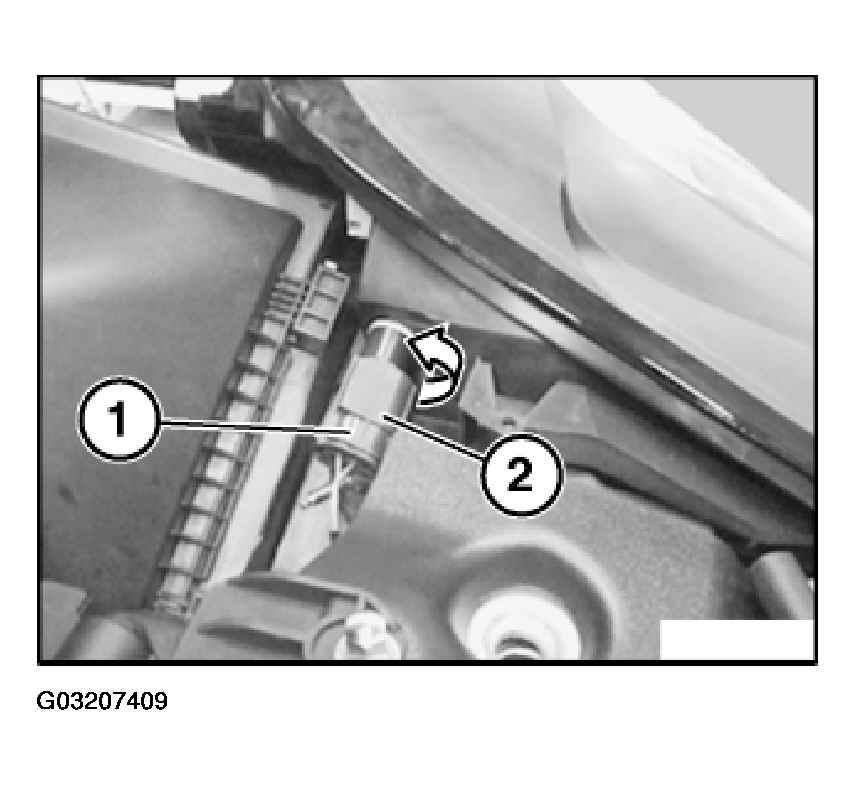

Fig 1: Removing Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Press bulb (1) downwards slightly, turn through approx. 45° in direction of arrow and pull out.

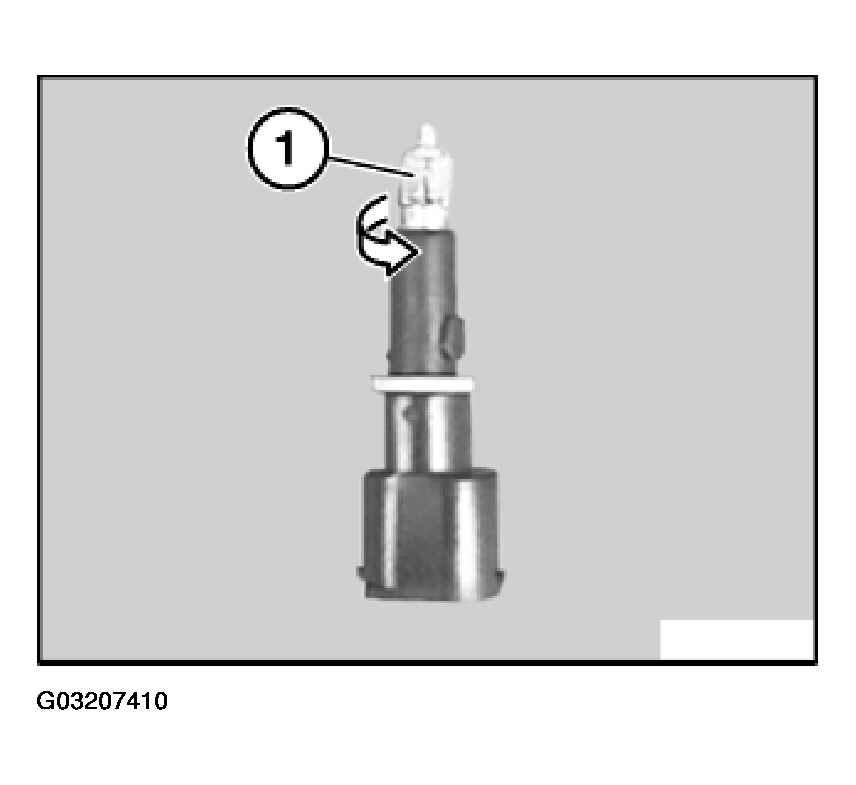

Fig 2: Removing Bulb

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Do not touch glass part of bulb with bare fingers. Only touch bulb on its base or with a clean cloth or packaging of light bulb.

Note type of bulb. Refer to LIGHTS - TECHNICAL DATA .
