51 16 212 Removing and installing trim for center console

WARNING: This page is about a different car, the 2003 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove knob for selector lever and rubber gaiter. Refer to SHIFT LEVER GRIP/KNOB .

Lift out rubber gaiter (1).

Fig 1: Lifting Out Rubber Gaiter

Courtesy of BMW OF NORTH AMERICA, INC.

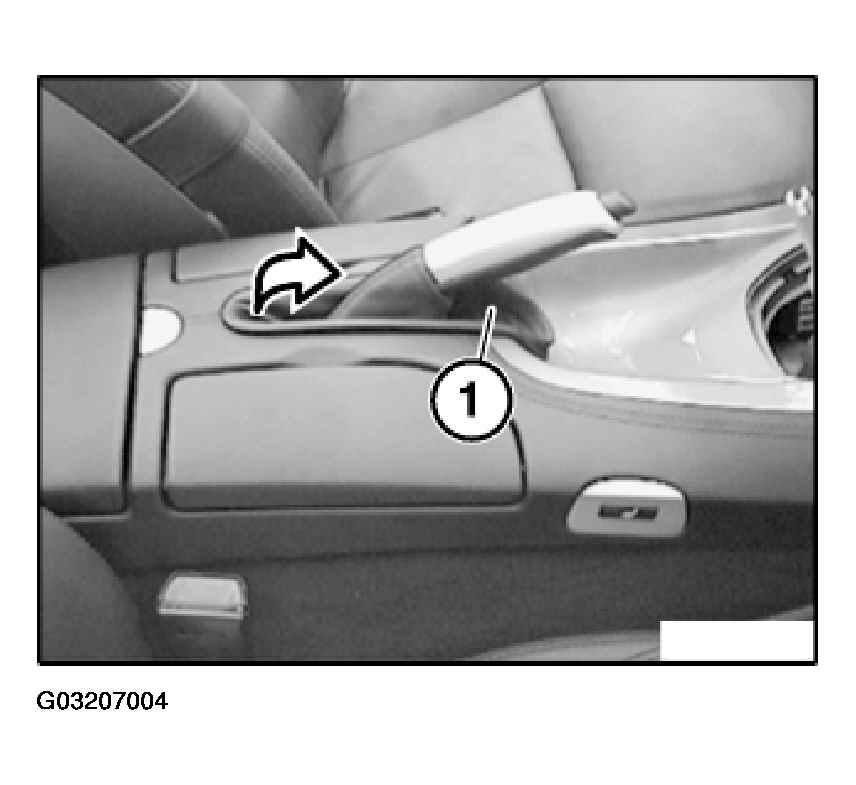

Unclip trim (1) towards top.

Disconnect plug connection.

Fig 2: Unclipping Trim

Courtesy of BMW OF NORTH AMERICA, INC.
