65 11 030 Removing and installing / replacing radio receiver

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

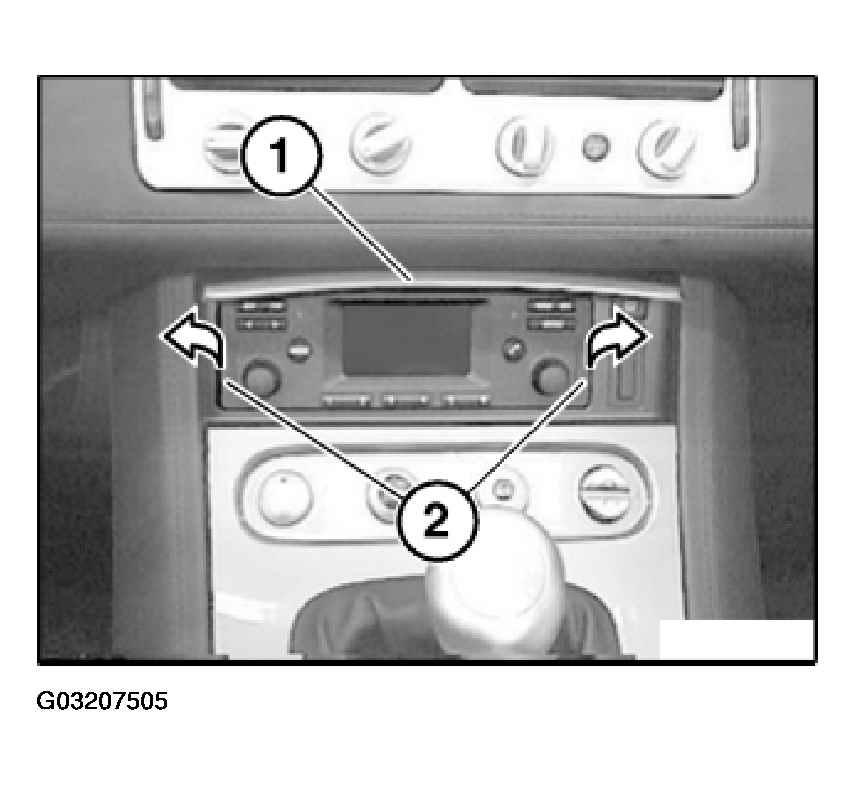

Open trim (1). Lever open flaps (2) at openings.

Fig 1: Levering Open Flaps

Courtesy of BMW OF NORTH AMERICA, INC.

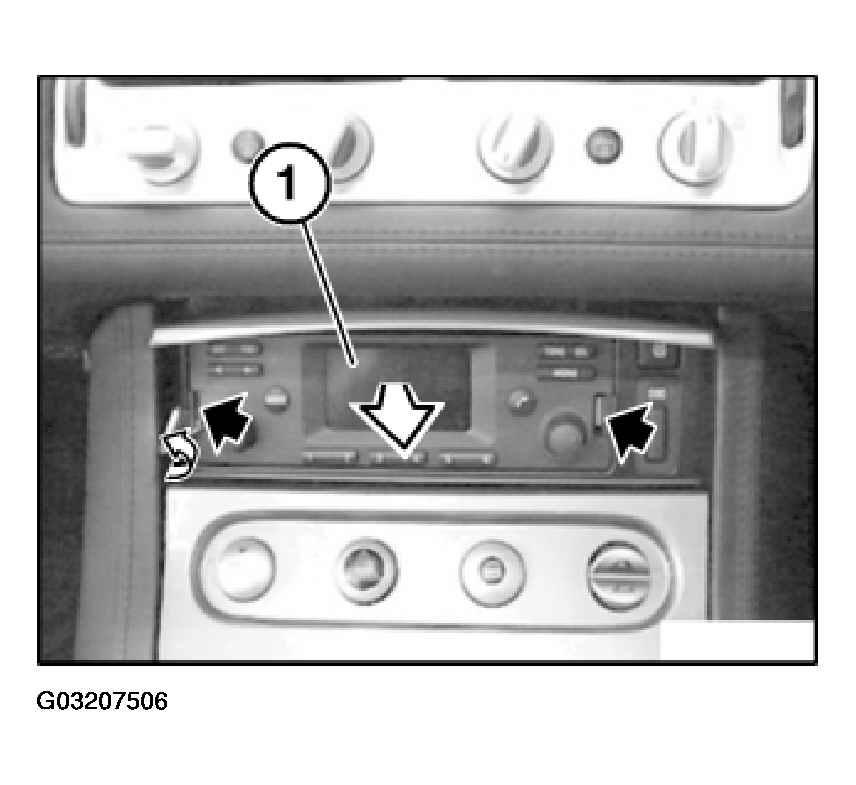

Insert Allen key in bore and turn screw in direction of arrow until it turns freely.

Pull out radio receiver (1) in direction of arrow. Disconnect plug connection.

Fig 2: Removing Radio Receiver

Courtesy of BMW OF NORTH AMERICA, INC.
