61 31 089 Removing and installing/replacing switch for tire pressure warning

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

64 1 020

Lever out switch for tire pressure warning (1) with special tool 64 1 020 and remove.

Disconnect plug connection.

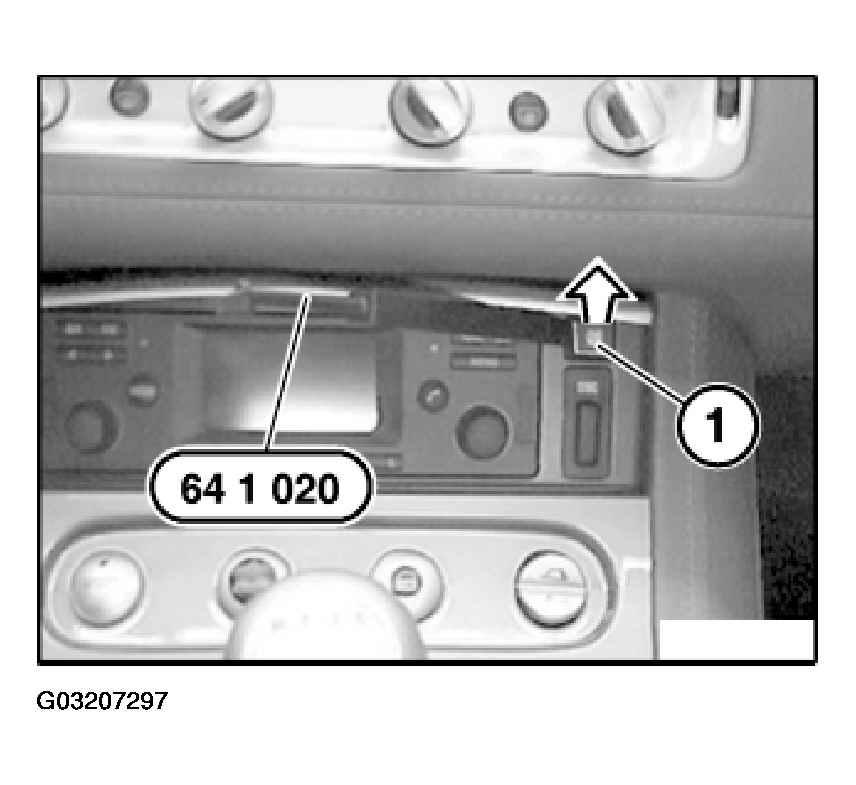

Fig 1: Levering Out Switch For Tire Pressure Warning With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.
