17 11 000 Removing and installing radiator (S62)

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Danger of scalding!
Only perform this work after engine has cooled down.

Drain coolant. Refer to 17 00 005 DRAINING AND ADDING COOLANT (S62) .

Remove and install coolant expansion tank. Refer to 17 11 100 REMOVING AND INSTALLING/REPLACING COOLANT EXPANSION TANK (S62) .

Remove fan cowl. Refer to 17 11 031 REPLACING FAN COWL (S62) .

Lift out spring (1).

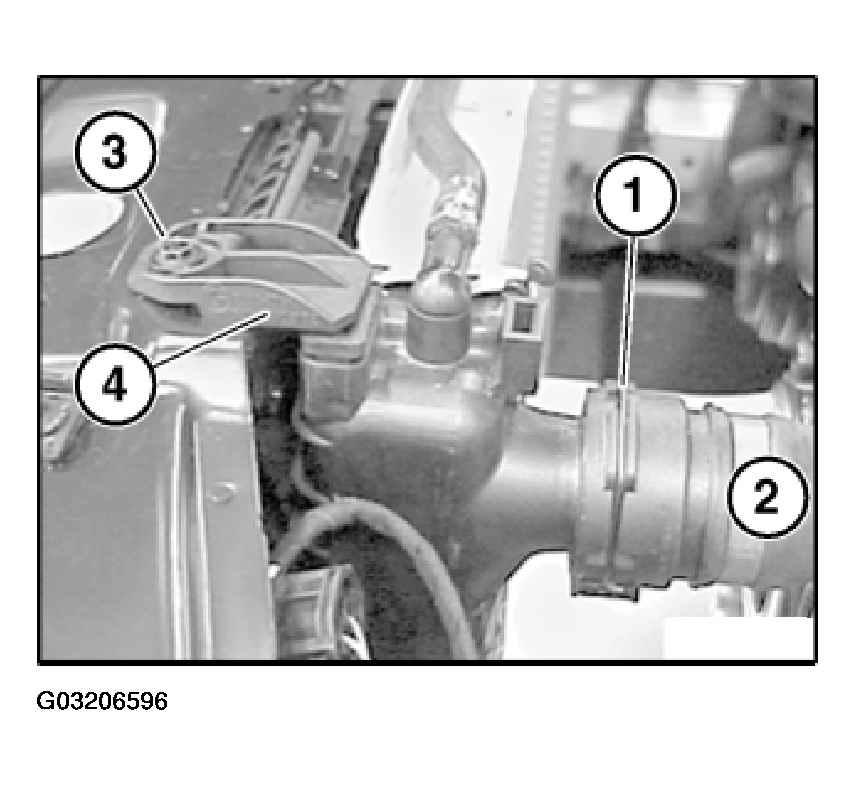

Fig 1: Identifying Spring, Water Hose And Brackets

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect water hose (2).

Release left and right screws (3) on radiator.

Remove both brackets (4).

Installation:

Slide back spring (1).

Water hose (2) must snap audibly into place.

Remove connector (1).

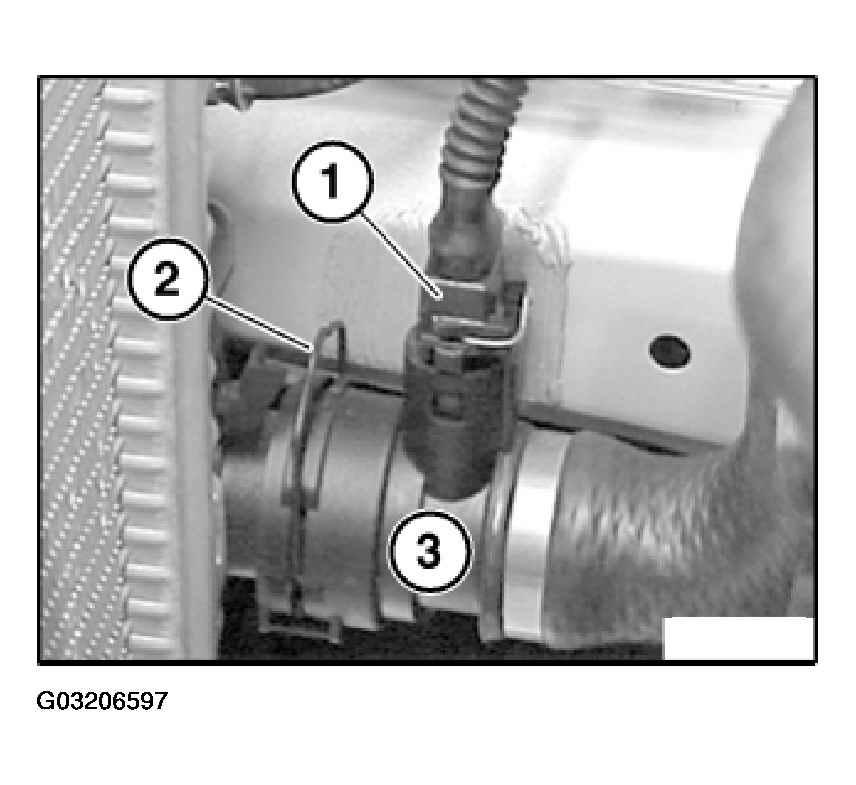

Fig 2: Identifying Connector, Spring And Water Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out spring (2).

Disconnect water hose (3).

Installation

Slide back spring (2).

Water hose (3) must snap audibly into place.

Unscrew screw.

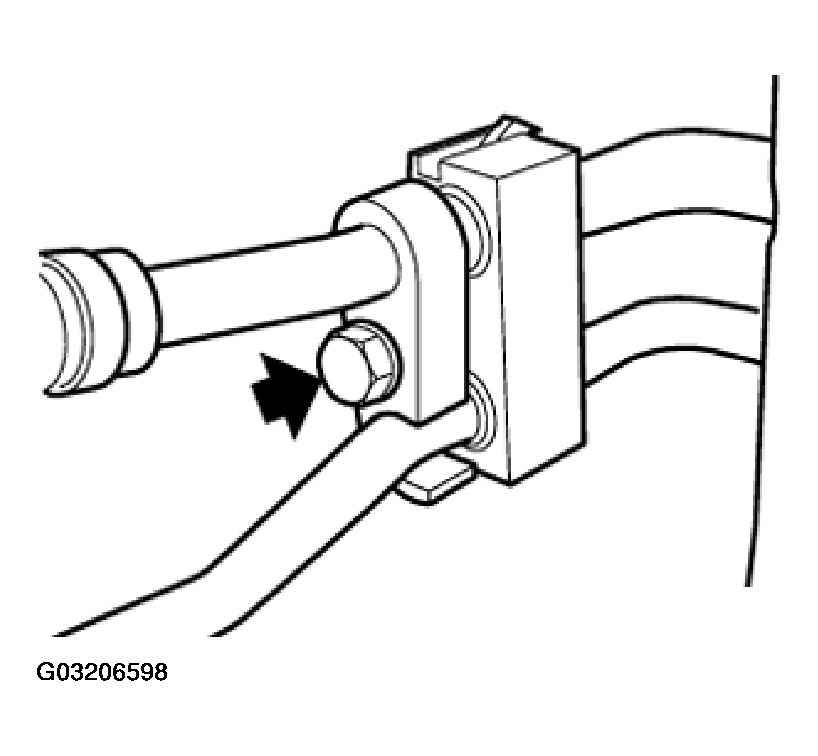

Fig 3: Disconnecting Hydraulic Lines From Cooling Loop

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect hydraulic lines from cooling loop.

NOTE: Catch and dispose of escaping hydraulic fluid.

Installation

Replace sealing rings.

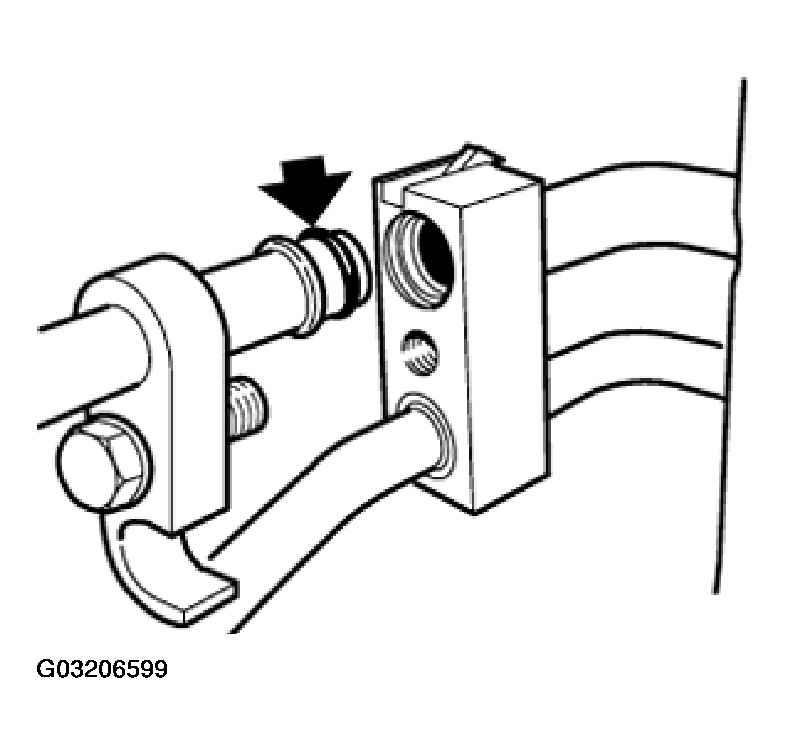

Fig 4: Replacing Sealing Rings

Courtesy of BMW OF NORTH AMERICA, INC.

Check fluid level in power steering fluid tank.

Lift radiator (1) up and out.

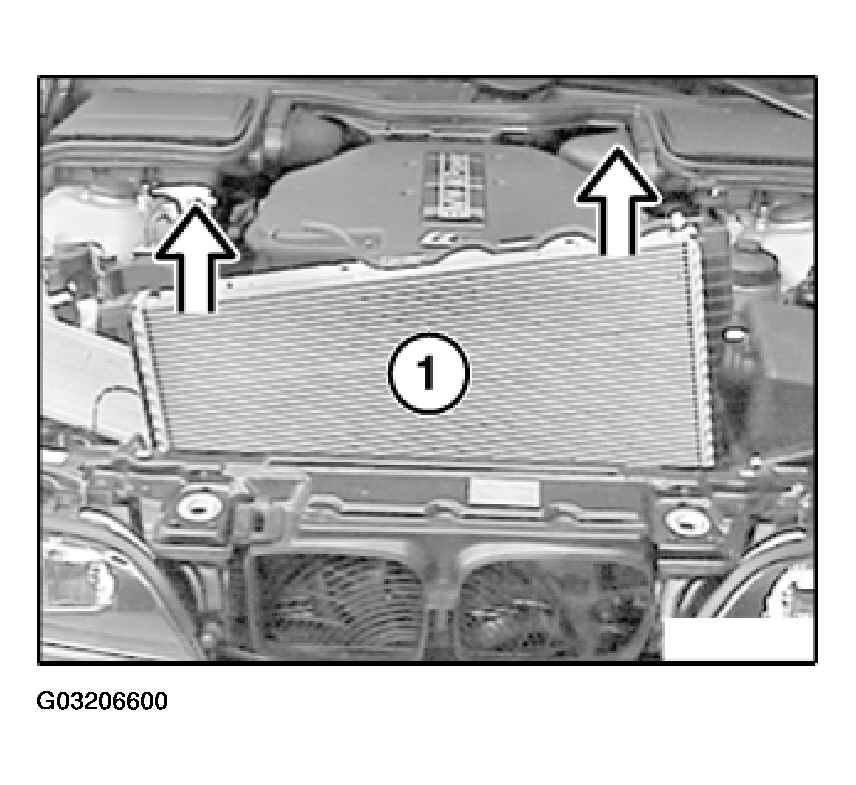

Fig 5: Lifting Radiator

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Note rubber mounts on left and right of radiator.

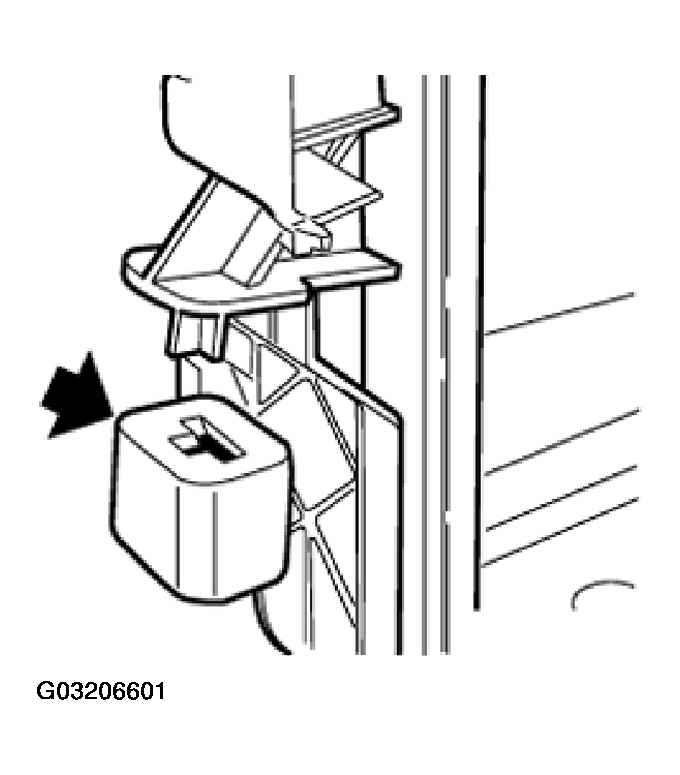

Fig 6: Identifying Rubber Mounts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Install rubber mount with radiator on left and right in bracket.

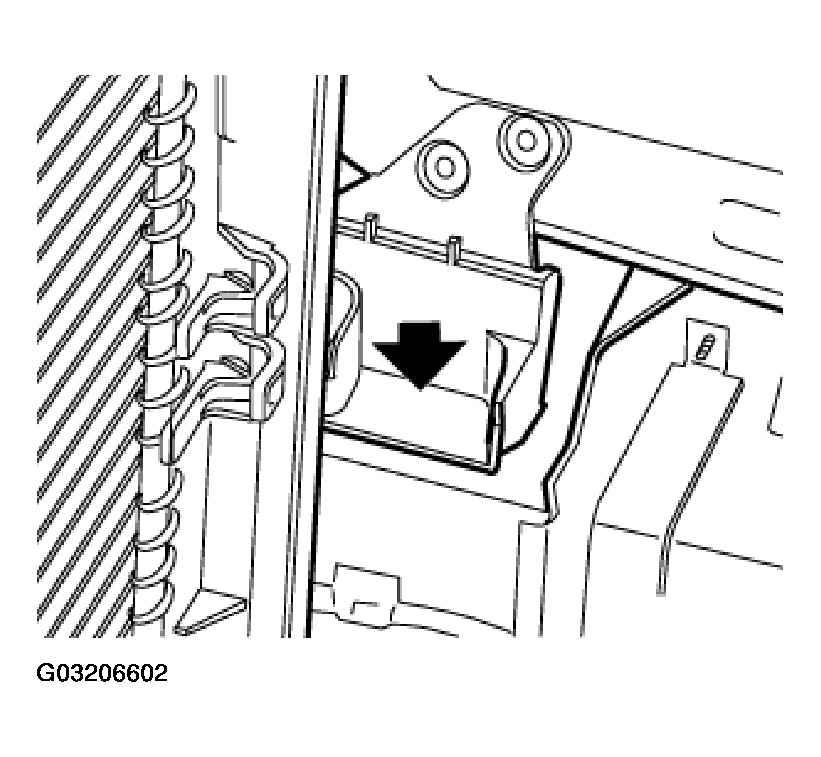

Fig 7: Installing Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.
