17 11 100 Removing and installing/replacing coolant expansion tank (S62)

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Drain off and top up coolant. Refer to 17 00 005 DRAINING AND ADDING COOLANT (S62) .

Remove upper section of right intake filter housing. Refer to 13 71 020 REMOVING AND INSTALLING RIGHT INTAKE HOUSING (S62) .

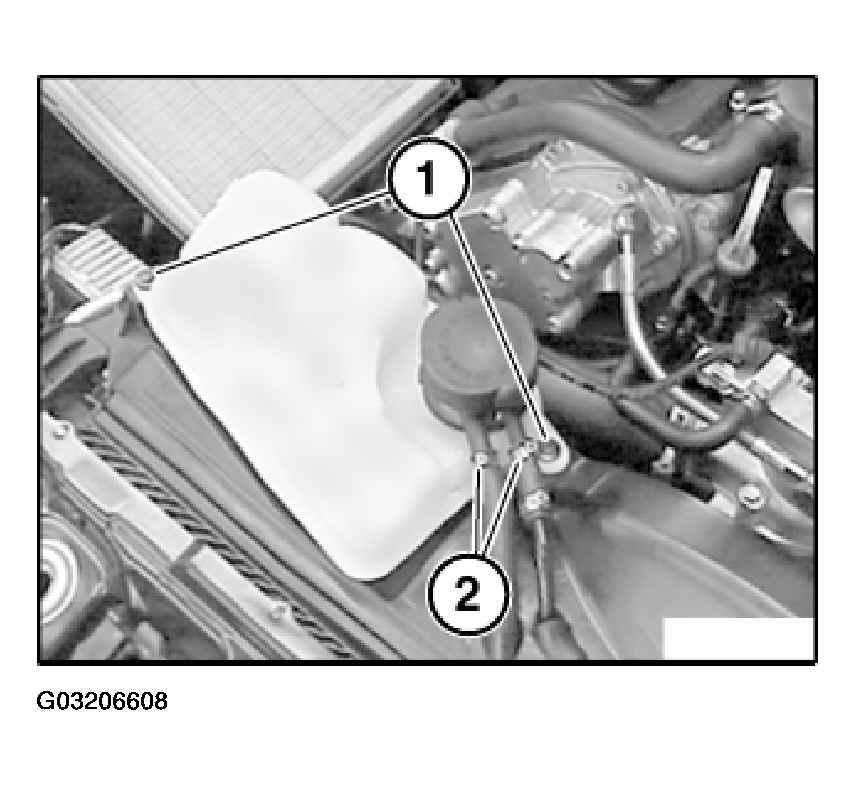

Remove expansion rivets (1) from expansion tank.

Fig 1: Removing Expansion Rivets From Expansion Tank

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen hose clamps (2).

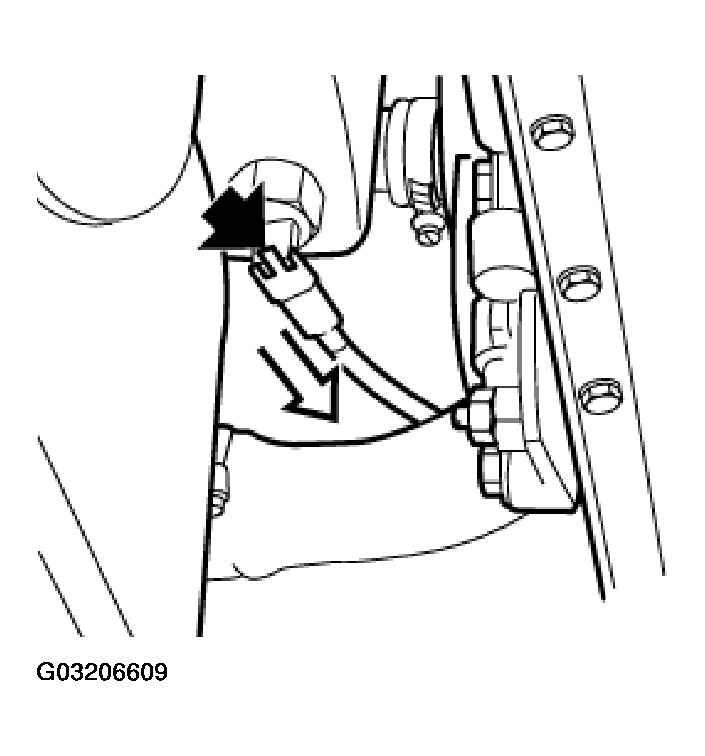

Remove connector from level sensor.

Fig 2: Removing Connector From Level Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

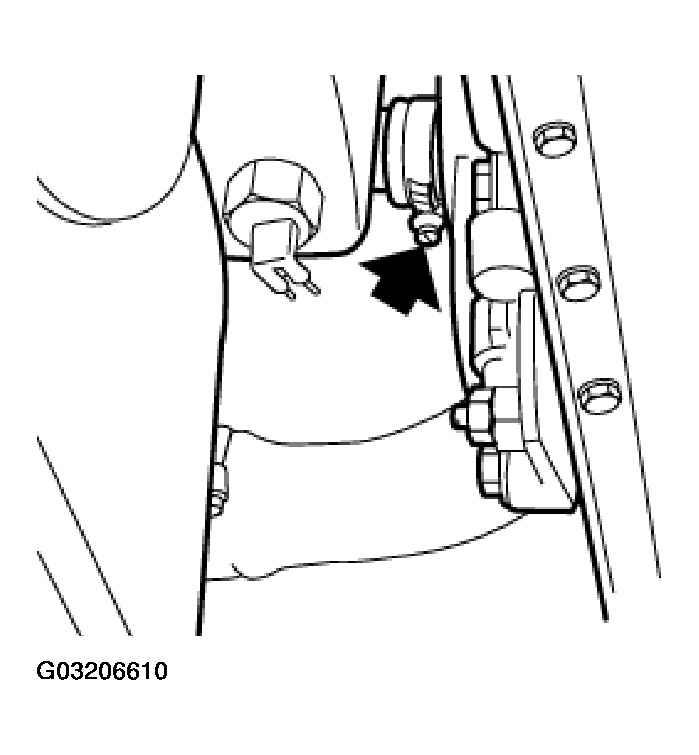

Release hose clamp on expansion tank.

Detach hose from expansion tank.

Pull out expansion tank in upward direction.

Fig 3: Removing Expansion Tank

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Suspend expansion tank in fan cowl.

Add recommended coolant.

Vent cooling system and check for leaks. Refer to 17 00 039 VENTING COOLING SYSTEM AND CHECKING FOR WATER LEAKS (S62) .
