17 11 031 Replacing fan cowl (S62)

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove and install fan impeller with fan clutch. Refer to 11 52 020 REMOVING AND INSTALLING OR REPLACING FAN CLUTCH (S62) .

Remove and install upper section of intake filter housing on right. Refer to 13 71 020 REMOVING AND INSTALLING RIGHT INTAKE HOUSING (S62) .

The following work steps are shown using the E39 as an example. The same procedure applies to the E52.

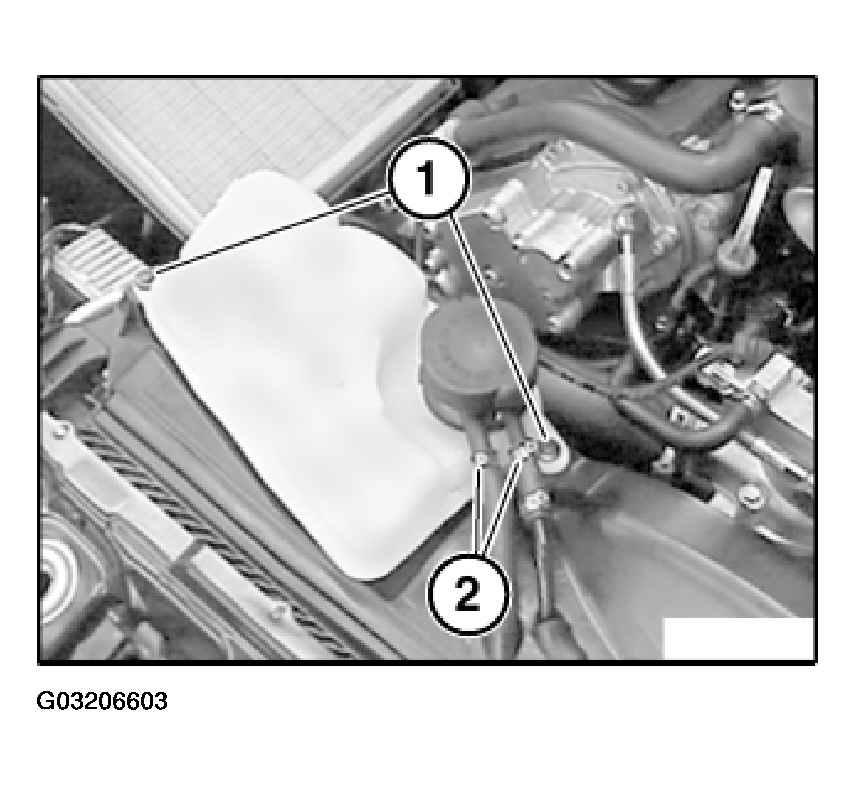

Lever out expansion rivets (1) of coolant expansion tank.

Fig 1: Identifying Expansion Rivets And Hose Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Release hose clamps (2).

Place coolant expansion tank to one side.

Lever expansion rivets (1) out of fan cowl.

Detach sealing strip (2).

Fig 2: Identifying Expansion Rivets And Sealing Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

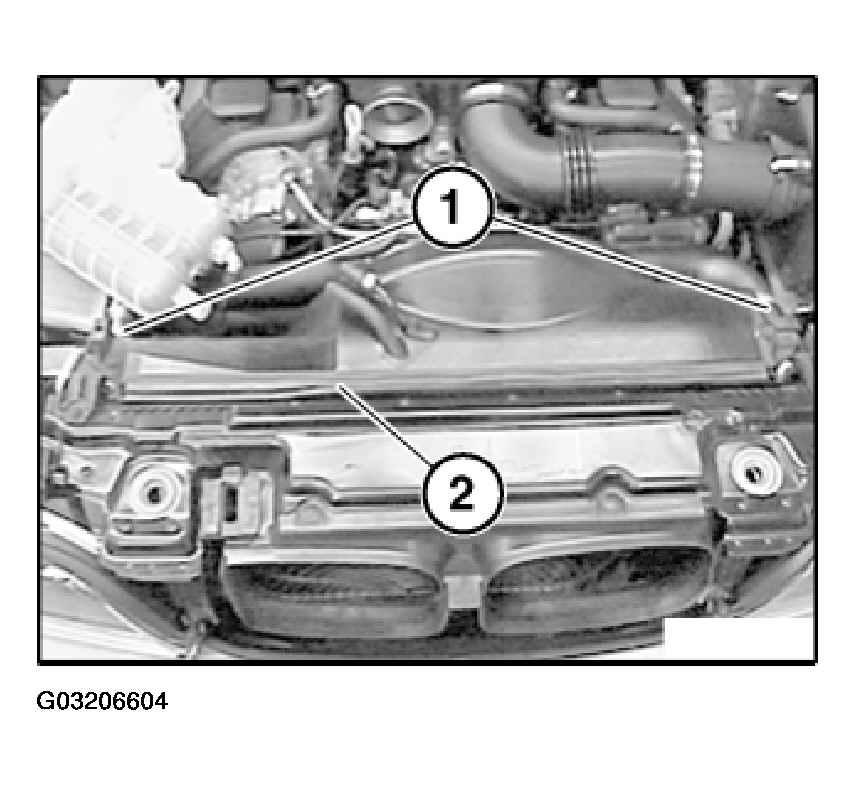

Pay attention to installation position of sealing strip (1).

Fig 3: Installing Sealing Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out fan cowl.

Installation:

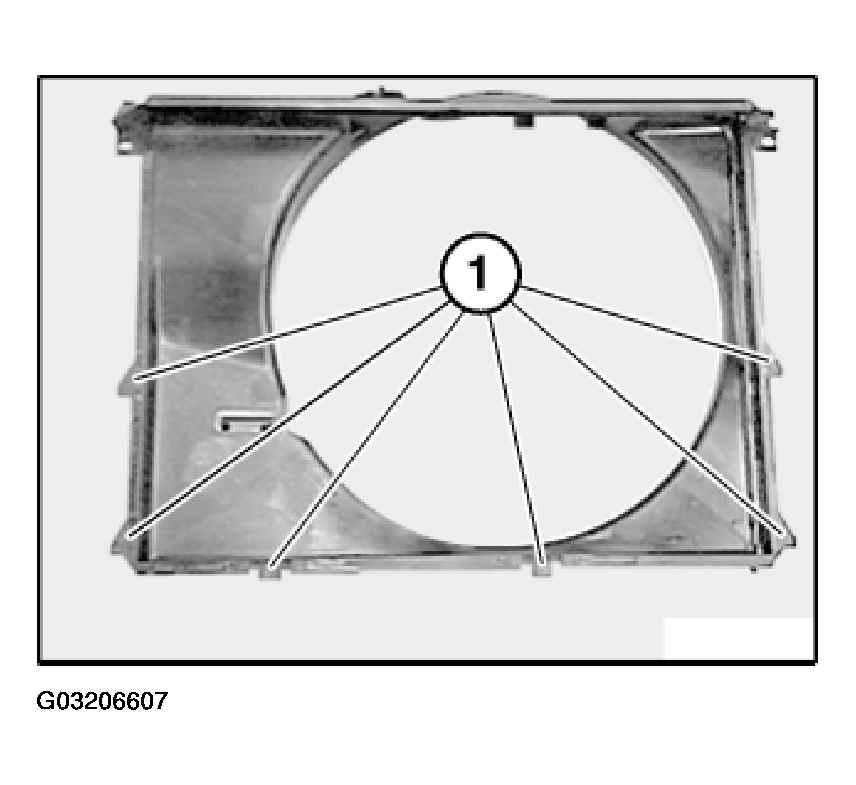

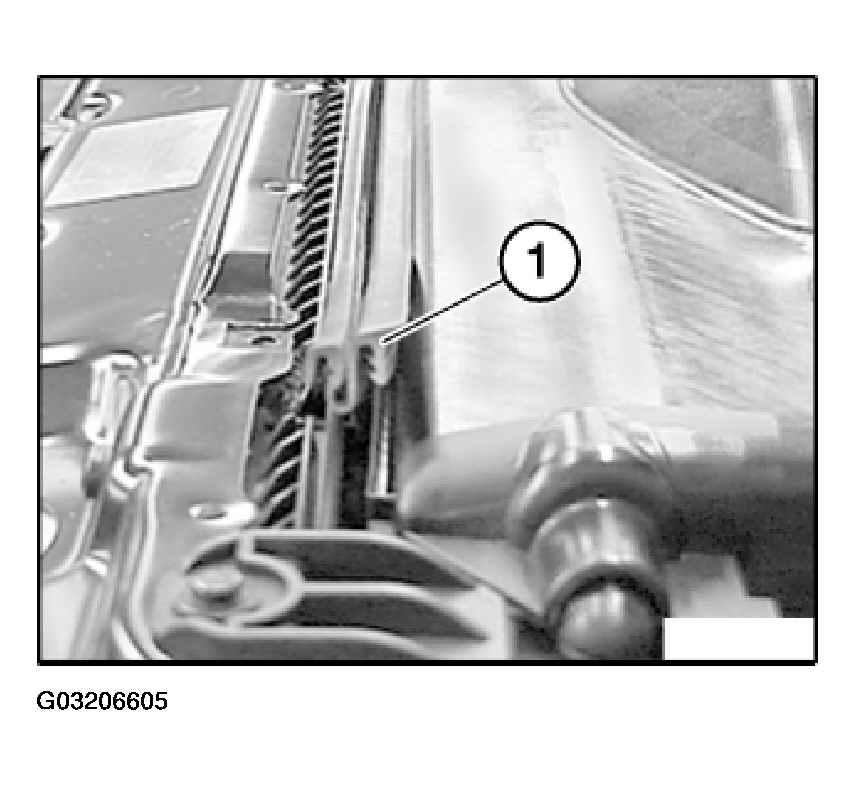

Attach lugs (1) to holders on radiator.

Fig 4: Attaching Lugs To Holders On Radiator

Courtesy of BMW OF NORTH AMERICA, INC.
