52 25 041 Removing and installing/replacing backrest frame on left or right rear seat

Necessary preliminary work:

• Remove LEFT OR RIGHT REAR SEAT

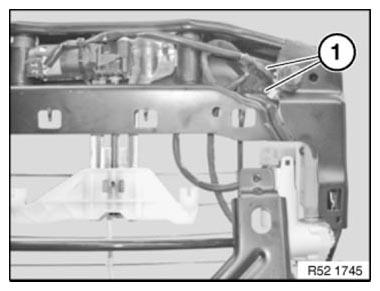

Unlock and disconnect plug connection (1) on drive unit for seat cushion tilt adjustment.

Lever out clips.

Feed out wiring harness.

Fig 1: Identifying Plug Connection On Drive Unit For Seat Cushion Tilt Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

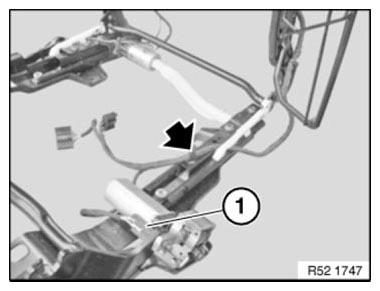

Unlock and disconnect plug connection (1) on drive unit for forward/back seat adjustment.

Fig 2: Identifying Plug Connection On Drive Unit For Forward/Back Seat Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

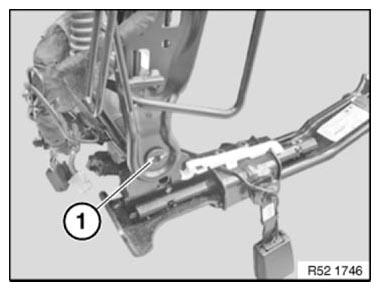

Release screws (1) on left and right.

Remove backrest frame.

Installation note:

Replace micro-encapsulated screws (1).

Tightening torque 52 25 8AZ .

Fig 3: Identifying Backrest Frame Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

• Remove BACKREST COVER  for rear seat
• Remove CONTROL UNIT
• Remove LUMBAR SUPPORT
• Remove MASSAGE MAT
• Remove pump for lumbar and massage
• Remove valve blocks for lumbar and massage. See REMOVING AND INSTALLING/REPLACING VALVE BLOCK FOR LUMBAR SUPPORT  and REMOVING AND INSTALLING/REPLACING MASSAGE VALVE BLOCK
• Remove FOUR-BAR LEVER  on rear seat backrest.

Removing wiring harness:

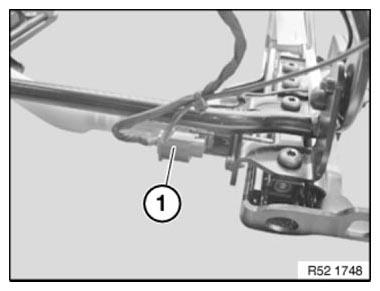

Unlock plug connections (1) and disconnect.

Feed wiring harness out of backrest frame.

Fig 4: Identifying Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

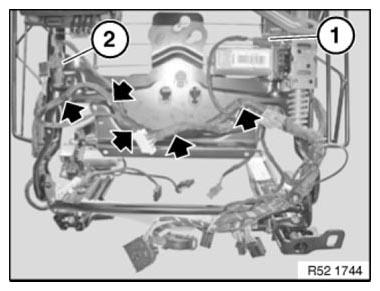

Unfasten plug connection (1) and disconnect.

Remove connector housing (2).

Lever out all clips and remove wiring harness.

Fig 5: Identifying Plug Connection And Connector Housing

Courtesy of BMW OF NORTH AMERICA, INC.
