52 25 410 Replacing backrest cover for left or right rear seat

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove REAR SEAT
Remove REAR PANEL on rear seat backrest

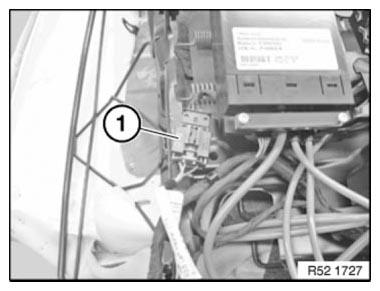

Unlock and disconnect plug connection (1) for backrest heating.

Fig 1: Identifying Backrest Heating Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

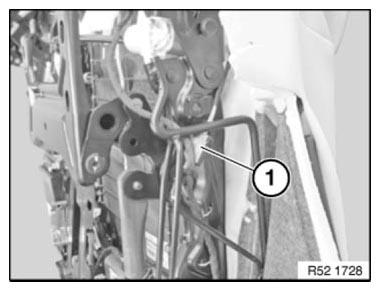

Unlock and disconnect plug connection (1) for climate-control mat.

Fig 2: Identifying Climate-Control Mat Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Cut cable straps (1) on left and right.

Installation note:

Replace faulty cable straps.

Fig 3: Identifying Cable Straps On Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.

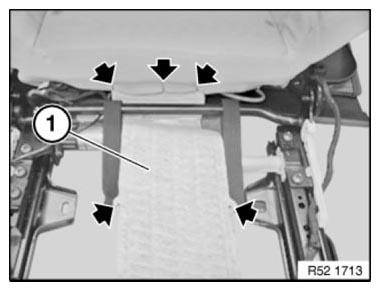

Release all clamps in area of climate-control mat (1).

Fig 4: Locating Climate-Control Mat Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

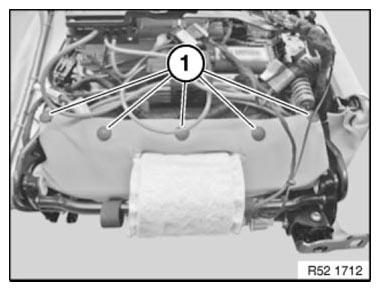

Loosen clamps (1).

Disengage backrest cover at top from metal tabs.

Fig 5: Disengaging Backrest Cover At Top From Metal Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

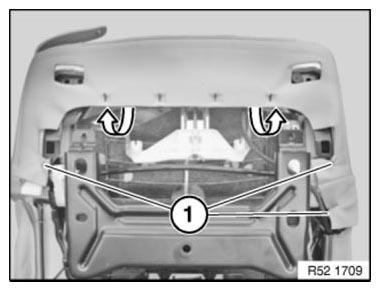

Lever out clips (1).

Installation note:

Replace faulty clips (1).

Fig 6: Identifying Backrest Cover Clips

Courtesy of BMW OF NORTH AMERICA, INC.

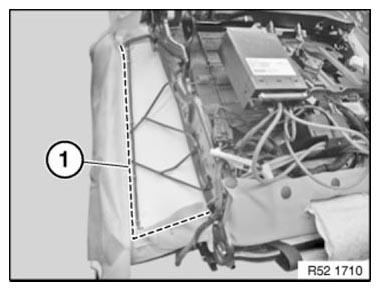

Release clamps in marked area (1).

Fig 7: Identifying Clamps Releasing Area

Courtesy of BMW OF NORTH AMERICA, INC.

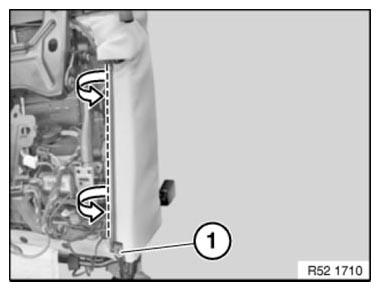

Lever out welt in marked area.

Release clamp (1).

Remove backrest cover with upholstery from backrest frame.

Fig 8: Removing Backrest Cover With Upholstery From Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

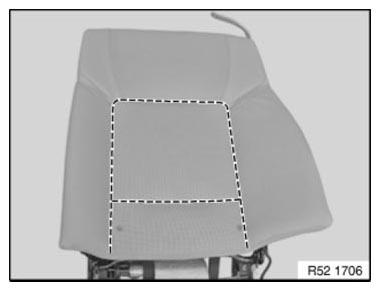

Release clamps in marked area.

Remove backrest cover from upholstery.

Feed climate-control mat out of backrest cover.

Fig 9: Identifying Clamps Releasing Area On Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Pull trim wires out of seat cover.

Installation note:

Slide trim threads into new seat cover.

If necessary, cut mounting for trim threads.

NOTE: Remove all remnants of clamps from backrest cover, upholstery and backrest frame.

Installation note:

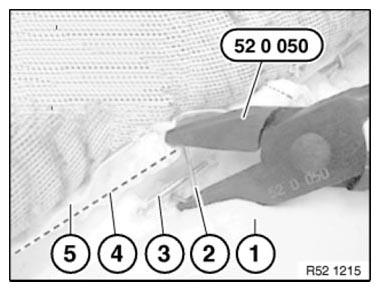

Bend new clamp (2) closed with pliers 52 0 050 .

Clamp
Upholstery
Trim wire in upholstery
Trim wire in seat cover
Cover

Fig 10: Bending Clamp Closed With Pliers (52 0 050)

Courtesy of BMW OF NORTH AMERICA, INC.

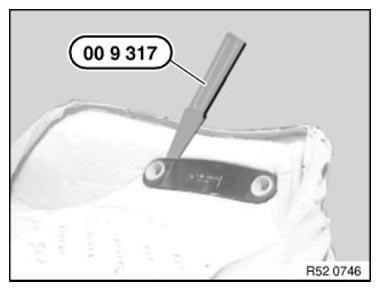

Lever out locking strip of head restraint guide with plastic wedge 00 9 317 .

Installation note:

Mount straight end face of head restraint guide towards front.

Fig 11: Removing Locking Strip Of Head Restraint Guide With Plastic Wedge (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.
