52 25 049 Replacing lumbar support on left or right rear seat

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove MASSAGE MAT

Detach air hoses from solenoid valve.

NOTE: Heat air hoses gently if they are too firmly seated on solenoid valve.

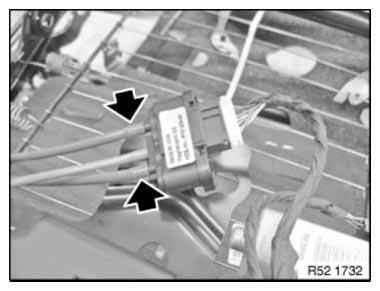

Fig 1: Locating Solenoid Valve Air Hoses

G06895819

Courtesy of BMW OF NORTH AMERICA, INC.

Remove clamps (1) at top left and right.

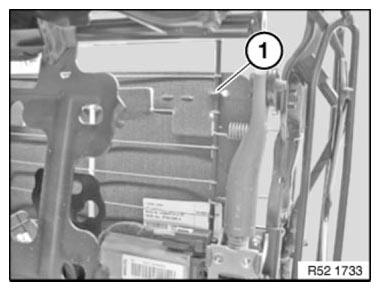

Fig 2: Identifying Clamps At Top Left And Right

G06895820

Courtesy of BMW OF NORTH AMERICA, INC.

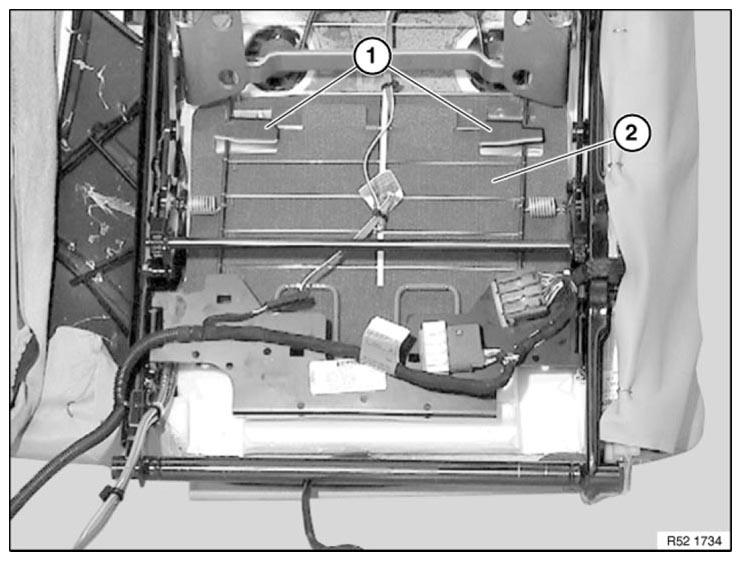

Fig 3: Identifying Lumbar Support And Spring Wire

G06895821

Courtesy of BMW OF NORTH AMERICA, INC.

Detach lumbar support (1) from spring wire (2).

Installation note:

Engage lumbar support on fifth spring wire from below.

Air hoses must be laid without kinks.

Check lumbar support for damage.

Run a function check.
