52 25 047 Removing and installing/replacing massage mat

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove LEFT OR RIGHT BACKREST COVER

Release all air hoses in marked area.

NOTE: Gently heat the air hoses if too tightly seated on the valve block.

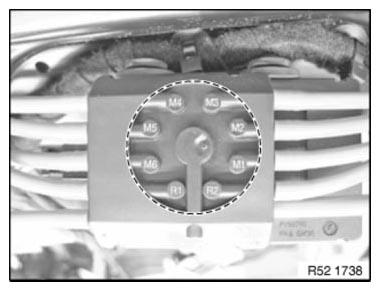

Fig 1: Identifying Air Hoses Releasing Area

G06895784

Courtesy of BMW OF NORTH AMERICA, INC.

Cut open cable tie (1).

Installation:

Replace faulty cable ties (1).

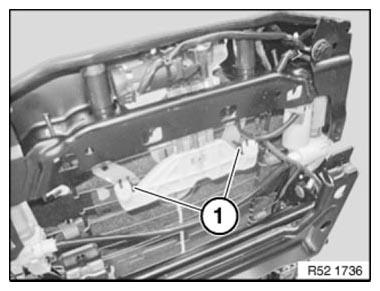

Fig 2: Identifying Cable Tie

G06895785

Courtesy of BMW OF NORTH AMERICA, INC.

Fold massage mat forwards.

Lever out clip (1).

Installation:

If necessary, replace faulty clip (1).

Remove massage mat.

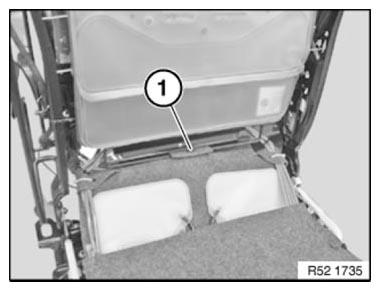

Fig 3: Identifying Massage Mat Clip

G06895786

Courtesy of BMW OF NORTH AMERICA, INC.
