12 51 001 Replacing wiring harness section for engine (S62)
Interrogate fault memory of DME control unit.
Switch off ignition.
Follow instructions for disconnecting and connecting battery. Refer to 12 00 ... Instructions for disconnecting and connecting battery .
Disconnect and cover battery negative lead.
Disconnect plug connections on DME control unit. refer to 12 14 550 Replacing control unit (DME) (S62) .
Disconnect remaining plug connections of engine wiring harness in electronics box.
Remove left and right partition walls for equipment compartment. Refer to 51 71 080 REMOVING AND INSTALLING/REPLACING PARTITION WALL FOR EQUIPMENT COMPARTMENT ON LEFT and 51 71 080 REMOVING AND INSTALLING/REPLACING PARTITION WALL FOR EQUIPMENT COMPARTMENT ON RIGHT .
Disconnect intake air manifold. Refer to 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD (S62) .
Disconnect plug connections (1).
Unclip cable (2) from cable guides.

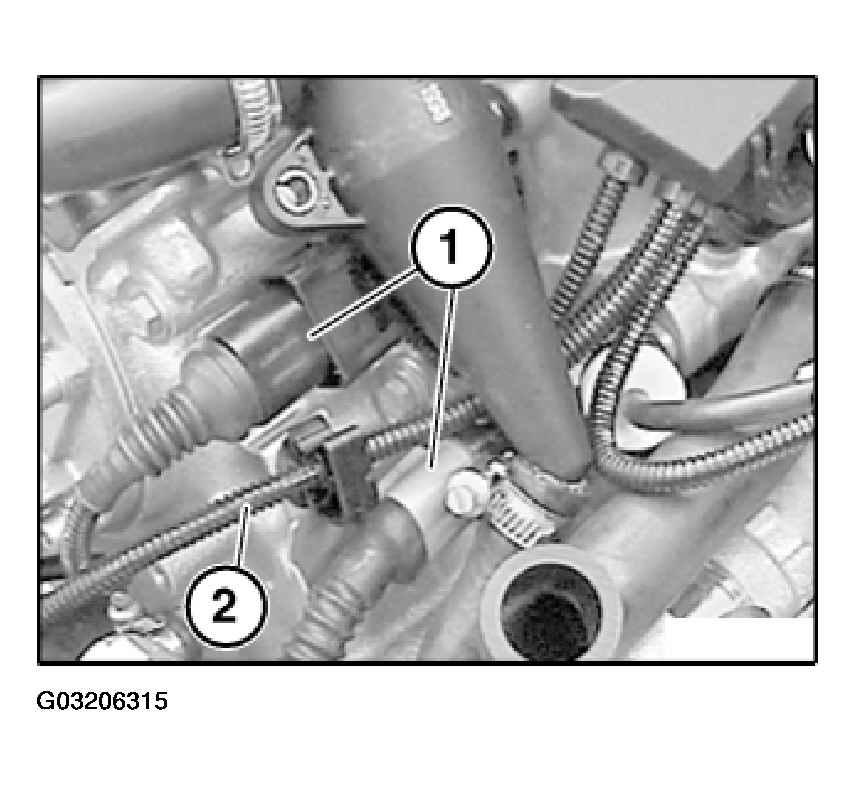

Disconnect plug connections (1).
Unclip cable (2) from cable guide.

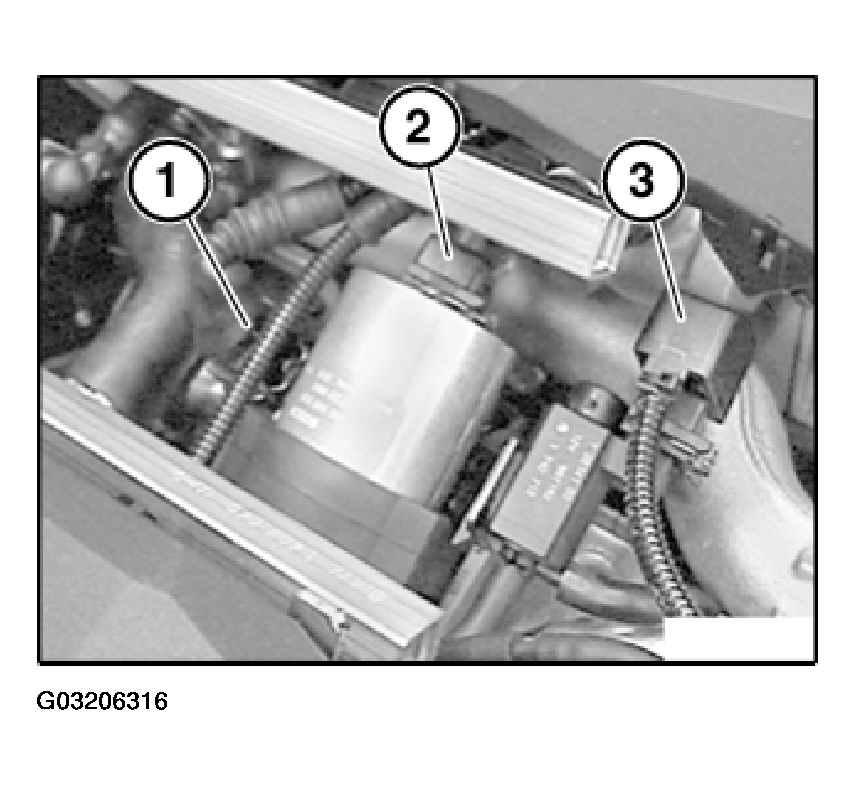

Disconnect plug connection for throttle actuator (1), idle speed control valve (2) and electric changeover valve (3).

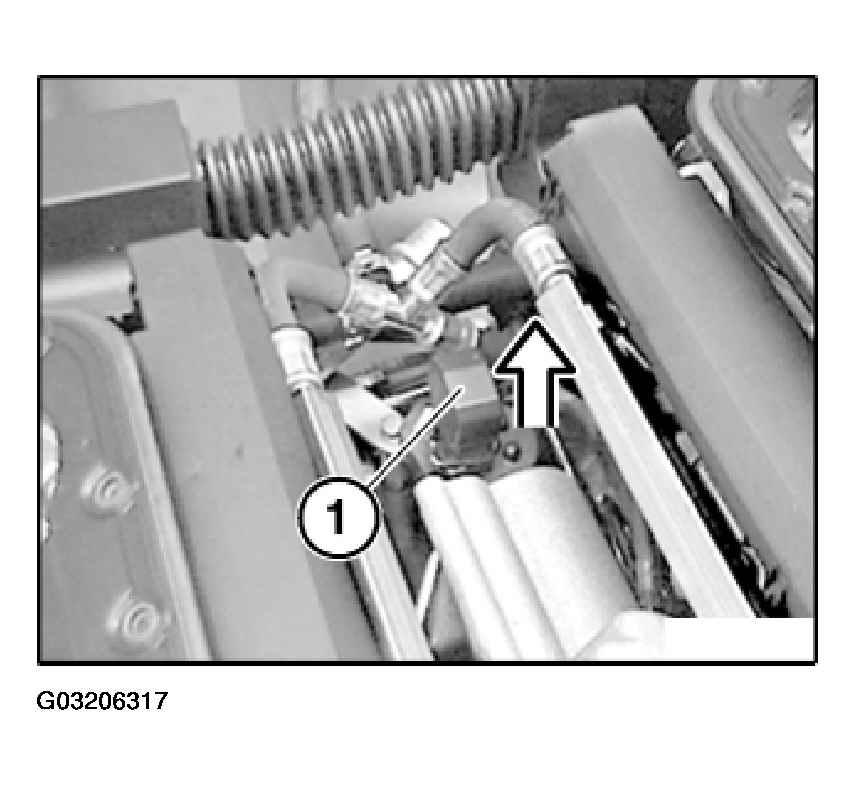

Disconnect plug connection (1) for tank venting valve.
For a better overview, the following work steps are shown on an engine that has been removed.

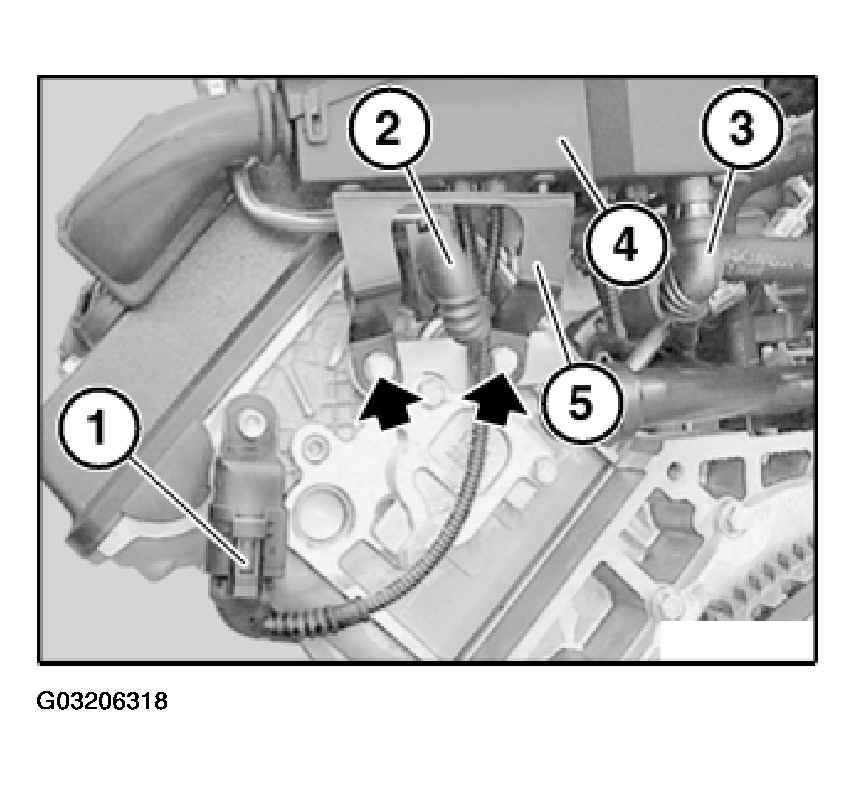

Disconnect plug connection (1) for left and right pulse generators for exhaust camshaft.
Disconnect plug connection (2) for left and right pulse generators for inlet camshaft.
Disconnect plug connection (3) for knock sensor pair from cable duct (4) on left and right.
Slacken screws.
Feed plug (1) through holder (5).

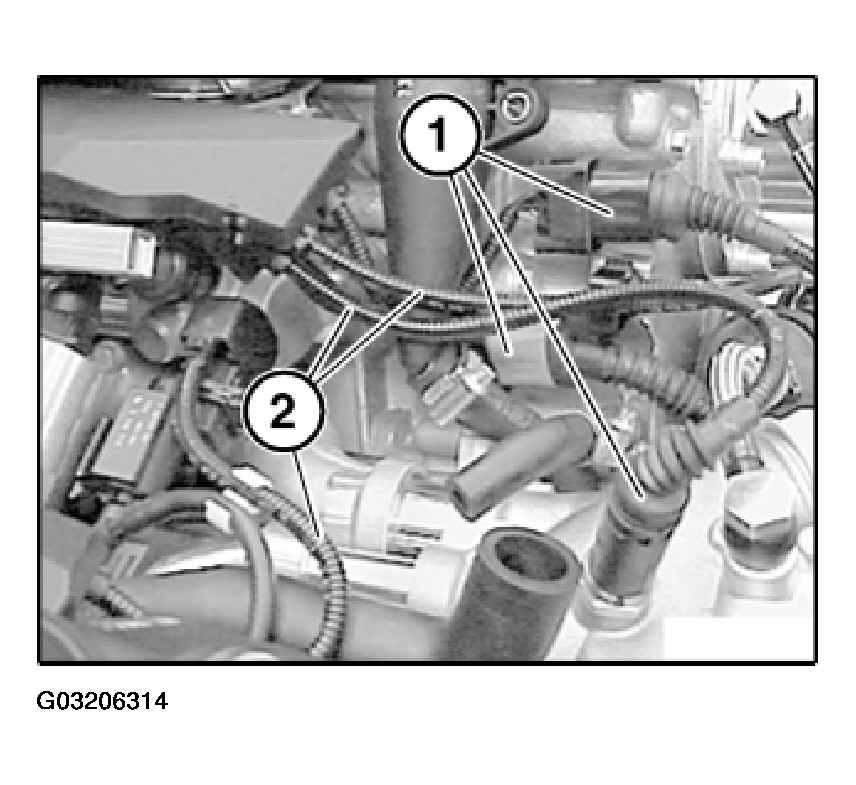

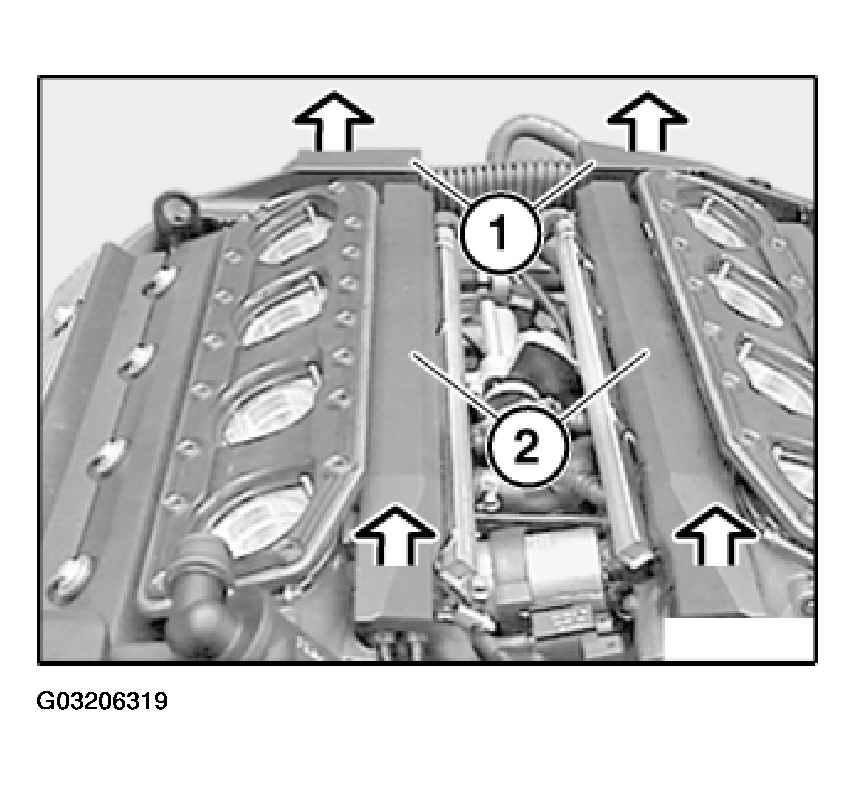

Unhook both cable ducts (1) from mounts and raise approx. 2 cm.
Installation:
Check seating of rubber grommets on ignition coil cable.
Unclip both cable strips (2), tilt up and tie back (e.g. to engine hood).

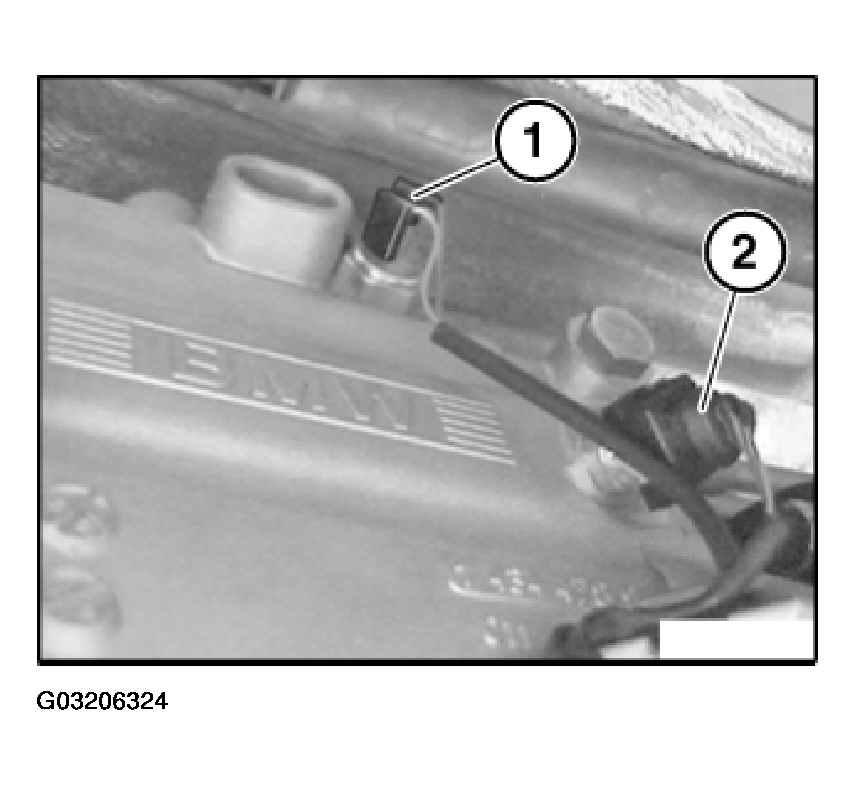

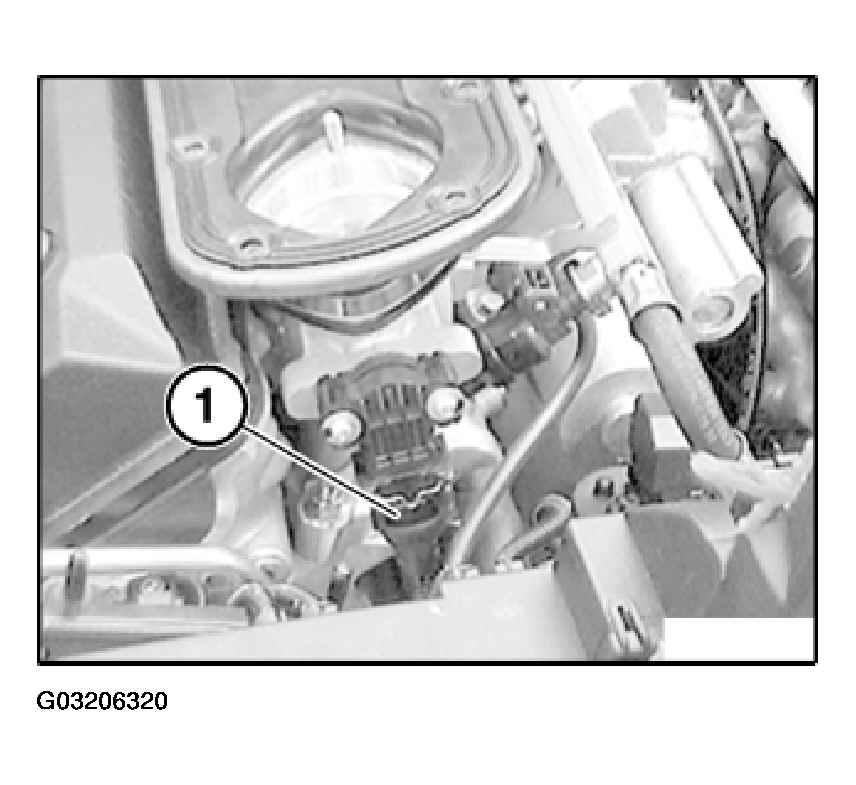

Disconnect plug connection (1) for throttle potentiometer on left and right.
Disconnect plug connections on ignition coils. Refer to 12 13 511 Replacing ignition coil (S62) .
Remove underbody protection at front and rear.
Mark left and right plug connections (1 and 2) to avoid mixing up plugs.

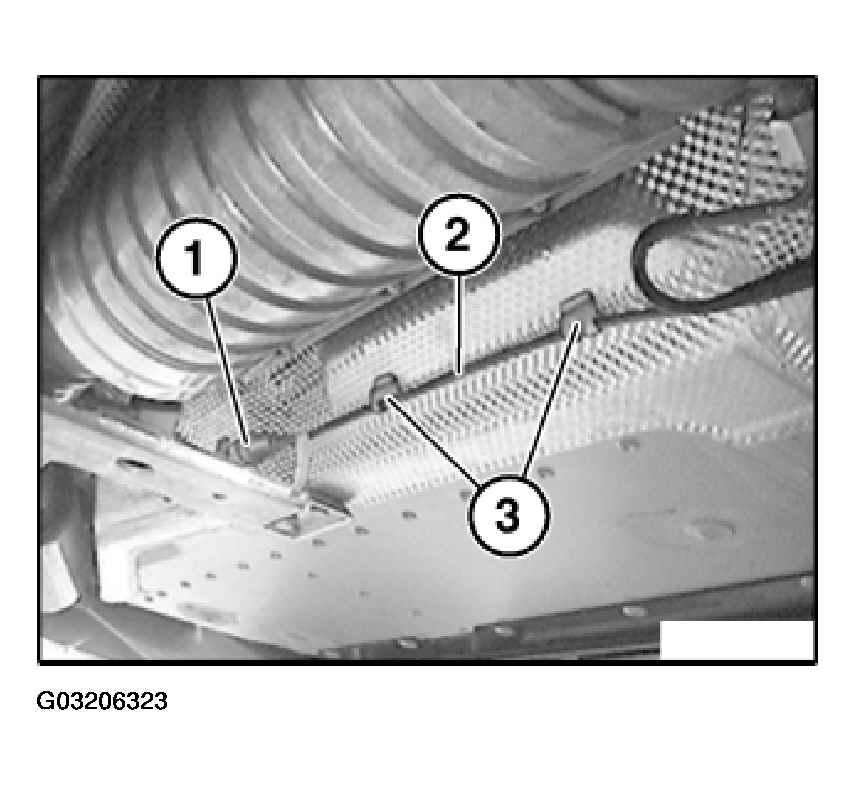

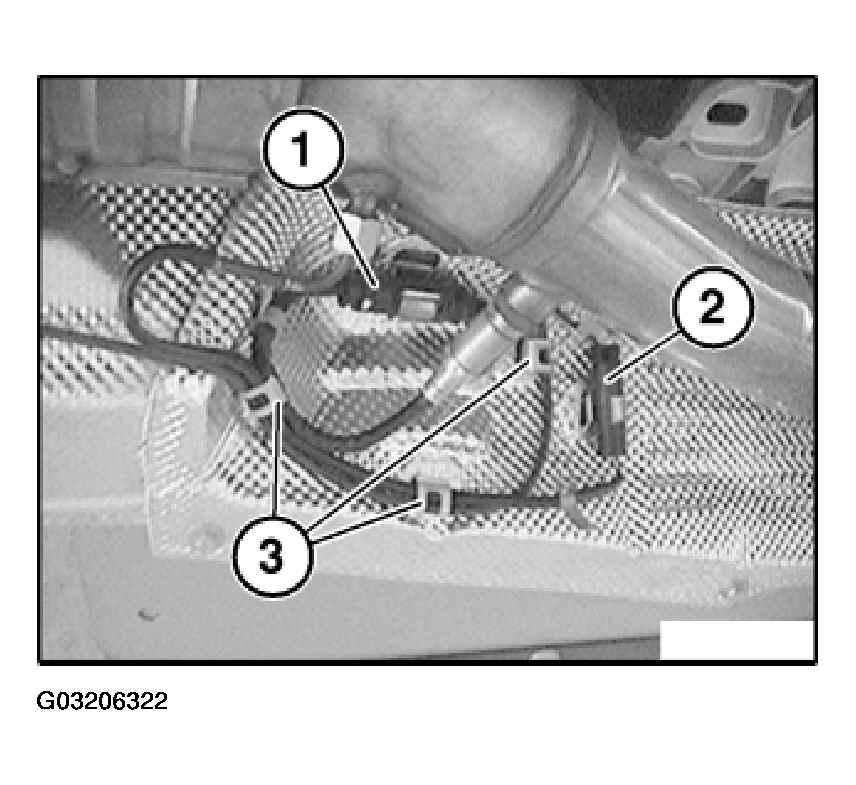

Unclip left and right plug connections (1 and 2) from holders and disconnect.
Unclip cables from cable holders (3).

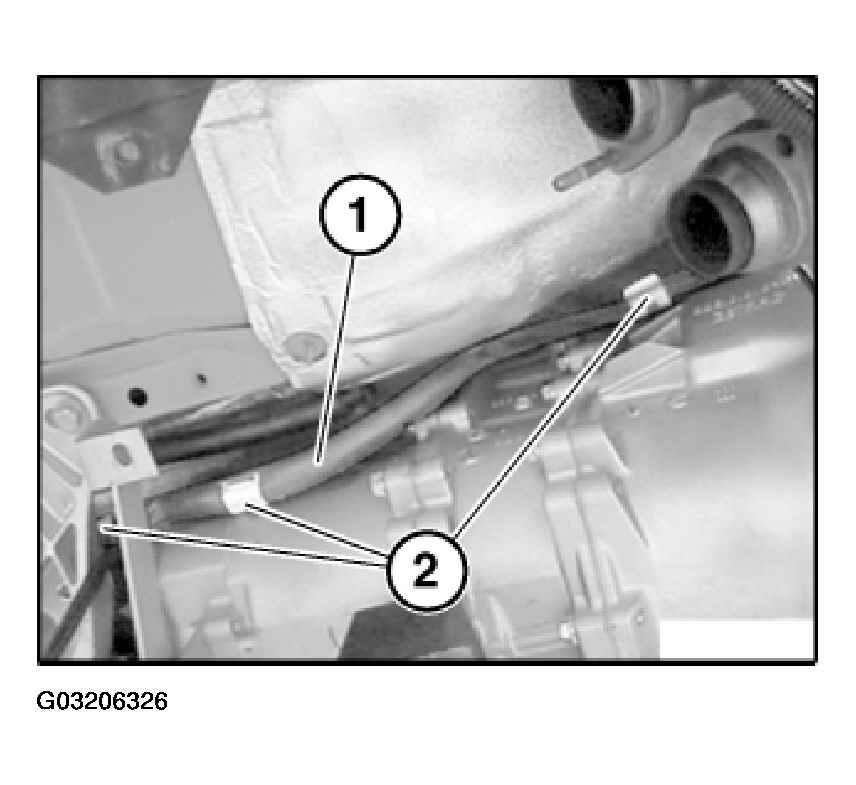

Disconnect plug connection (1).
Unclip cable (2) from cable holders (3).
Disconnect plug from reversing light switch (1) and gear detection switch (2).

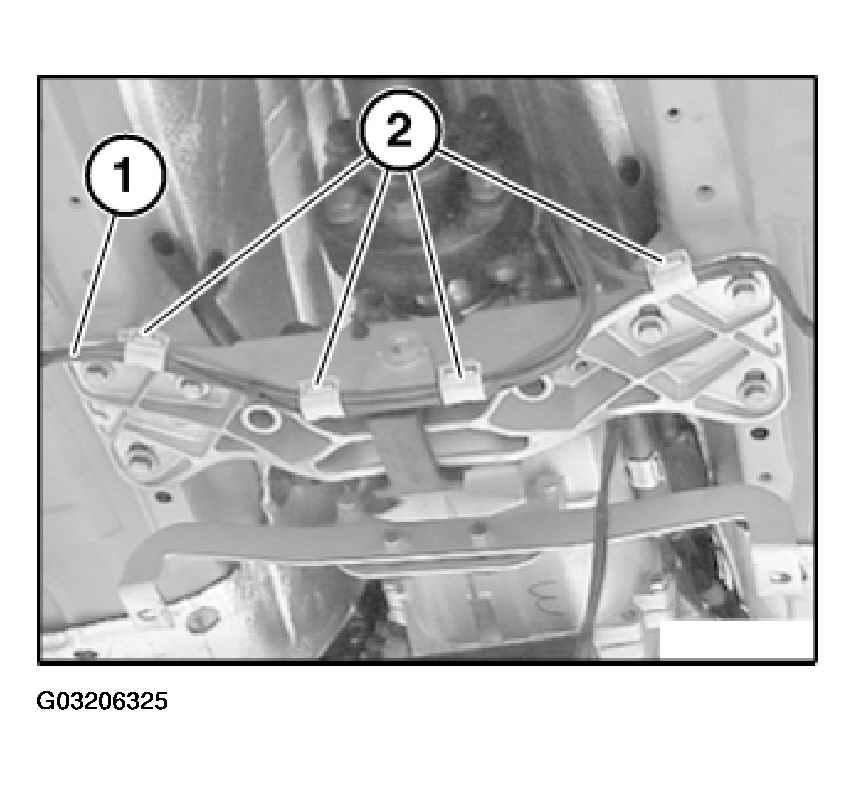

Unclip cable (1) from fixtures (2) on cross-member.
Unclip cable (1) from cable holder (2) on transmission housing.

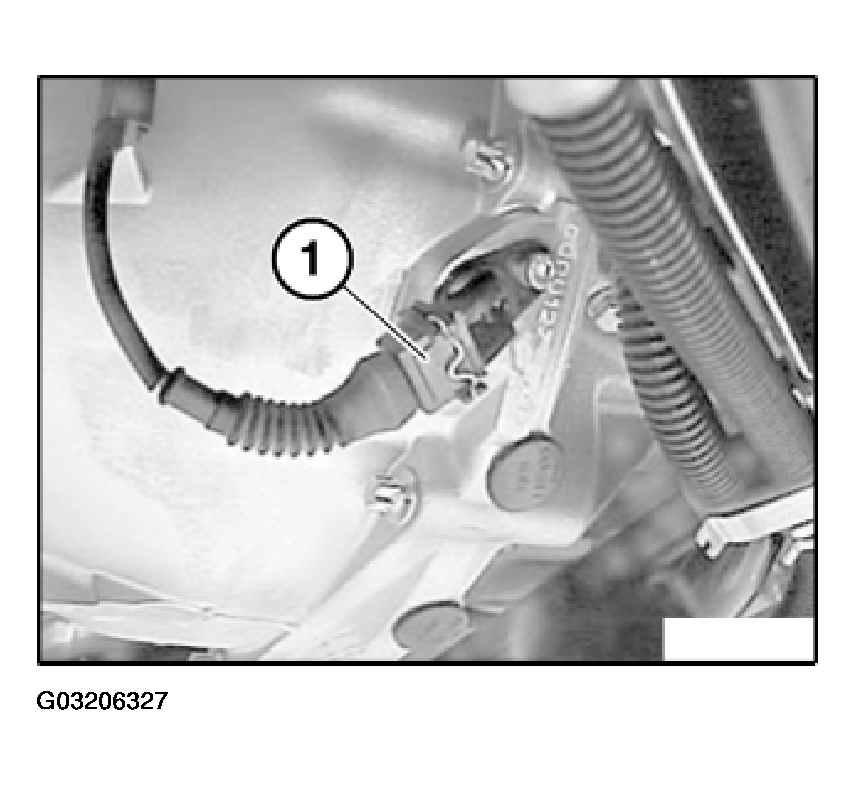

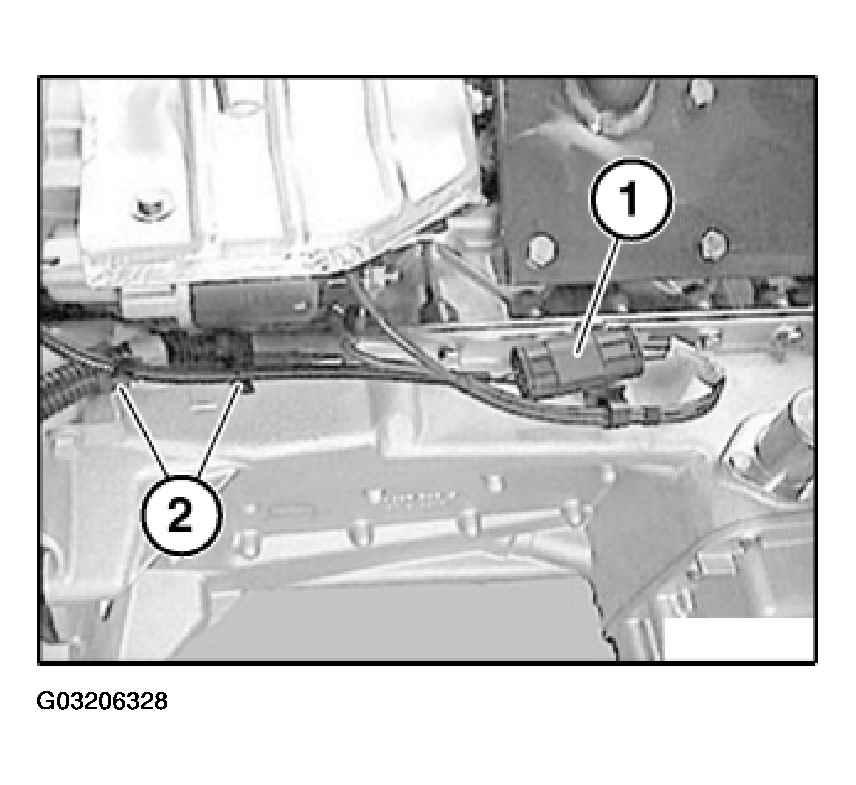

Disconnect plug connection (1) on pulse generator.
Disconnect plug connection (1) on starter motor.
Unclip cable from cable guides (2).
Check stored fault messages.
Rectify faults.
Then clear fault memory.
