51 71 080 Removing and installing/replacing partition wall for equipment compartment on left

WARNING: This page is about a different car, the 2003 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Release screw (1).

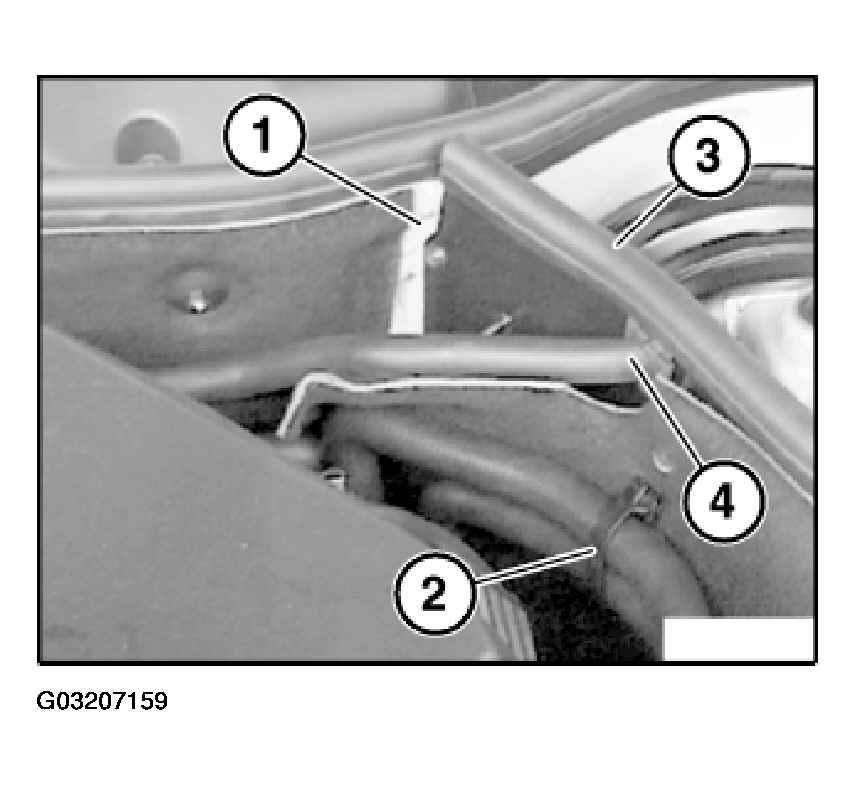

Fig 1: Detaching Vacuum Hose From Partition Wall

Courtesy of BMW OF NORTH AMERICA, INC.

Open hose clip (2).

Detach rubber seal (3).

Detach vacuum hose (4) from partition wall.

Release screw (2).

Remove partition wall (1).

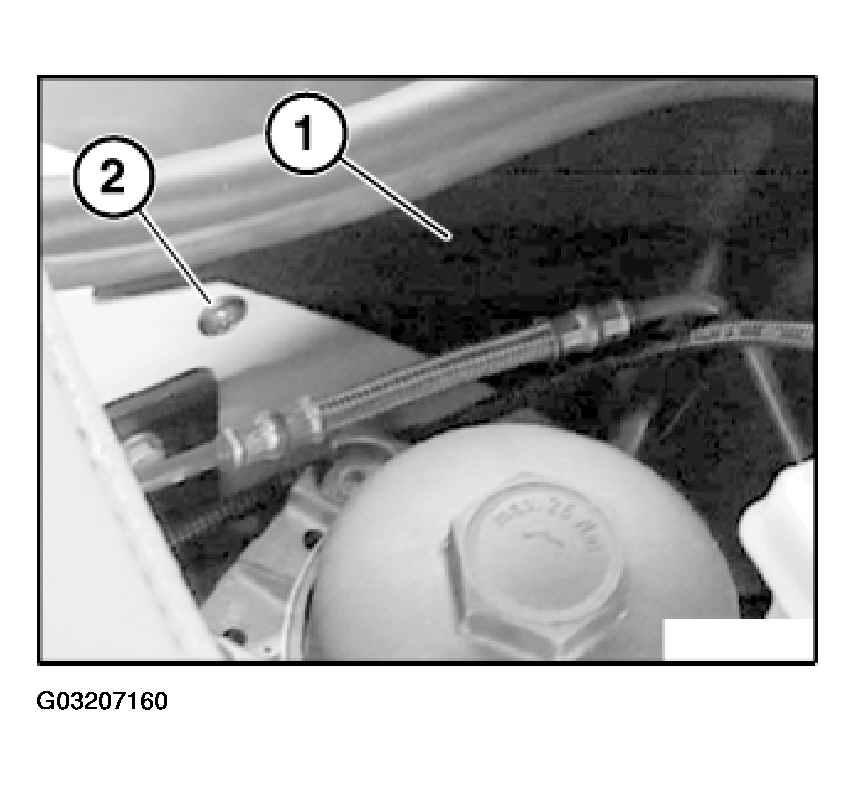

Fig 2: Removing Partition Wall

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install lugs (1) of partition wall on rail (2).

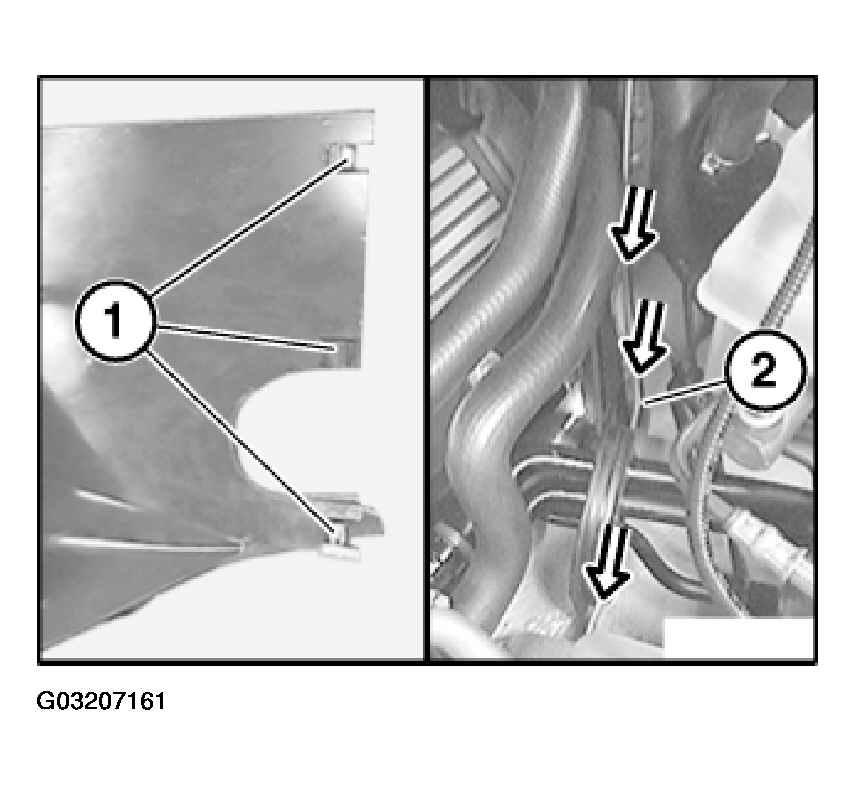

Fig 3: Installing Lugs Of Partition Wall On Rail

Courtesy of BMW OF NORTH AMERICA, INC.
