12 14 550 Replacing control unit (DME) (S62)

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Follow instructions for removing and installing electronic control units. Refer to 12 00 ... Instructions for removing and installing electronic control units .

Interrogate fault memory of DME control unit.

Switch off ignition.

Release screws.

Tightening torque, 12 90 4AZ. Refer to ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .

Remove cover (1) from electronics box.

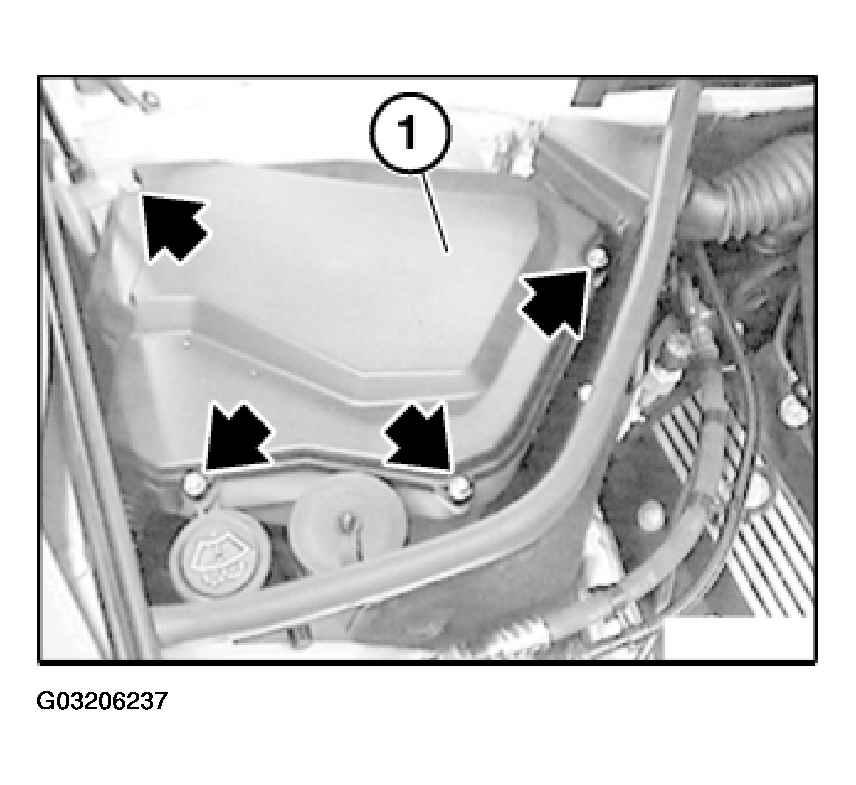

Fig 1: Removing Cover From Electronics Box

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug (1) and detach from control unit (2).

Remove control unit of Digital Motor Electronics (2).

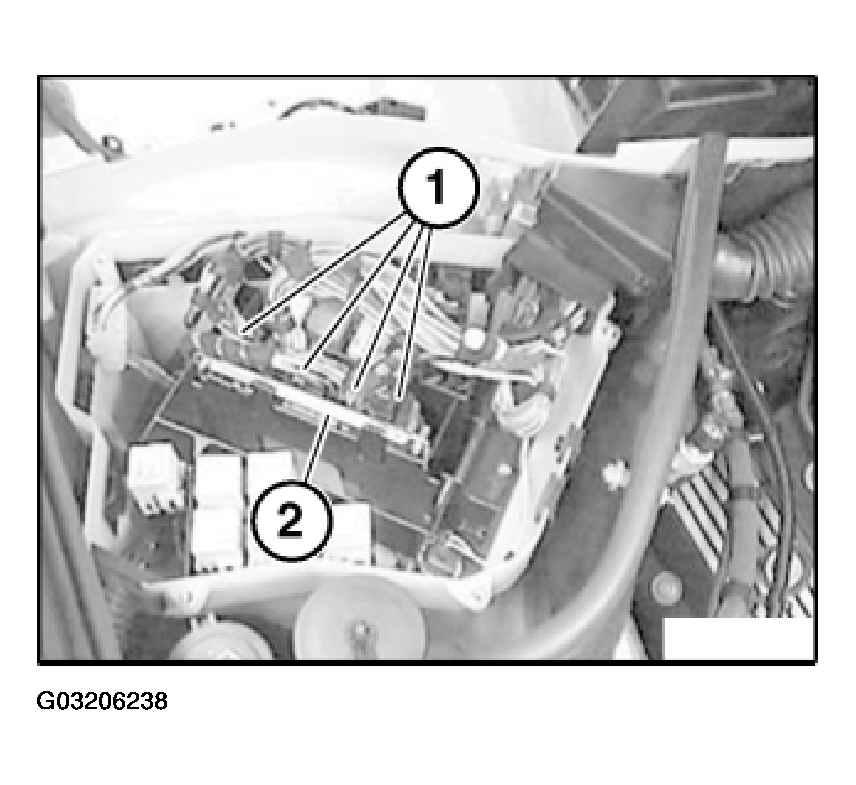

Fig 2: Removing Control Unit Of Digital Motor Electronics

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Interrogate fault memory of DME control unit.

Check stored fault messages.

Rectify faults.

Then clear fault memory.
