Right rear door trim panel

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove REAR DOOR TRIM PANEL
Remove FOOTWELL LIGHT

Unclip rocker switch for side window operation (1) 00 9 317 with special tool from door trim panel (2).

Disconnect plug connection and remove rocker switch.

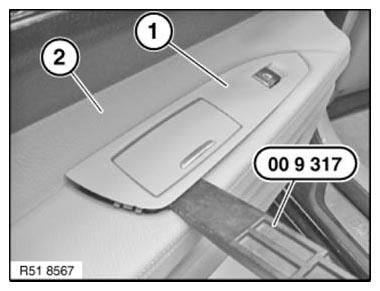

Fig 1: Removing Rocker Switch From Door Trim Panel With Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Punch CONTOUR FOR SEAT MEMORY SWITCH INTO DOOR TRIM PANEL
