63 31 020 Removing and installing/replacing footwell light

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Follow instructions for HANDLING LIGHT BULBS (INTERIOR LIGHTS) .

Footwell, left/right:

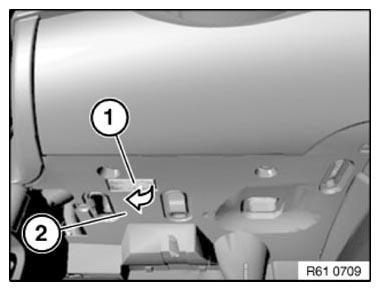

Lever footwell light (1) in direction of arrow out of trim panel (2).

Disconnect plug connection behind and remove footwell light (1).

Fig 1: Removing Footwell Light

Courtesy of BMW OF NORTH AMERICA, INC.

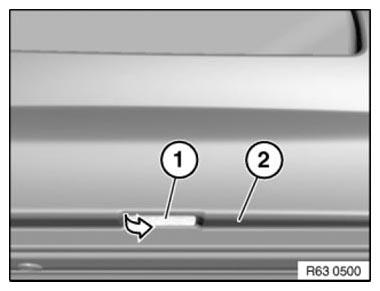

Lever footwell light (1) in direction of arrow out of door trim (2).

Disconnect plug connection behind and remove footwell light (1).

Fig 2: Removing Footwell Light

Courtesy of BMW OF NORTH AMERICA, INC.

Door, left/right:

Lever footwell light (1) in direction of arrow out of door trim panel (2).

Disconnect plug connection behind and remove footwell light (1).

Replacement:

If necessary, remove bulb, note BULB TYPE
The footwell light in LED technology must be completely replaced!

Fig 3: Identifying Footwell Light And Door Trim
Courtesy of BMW OF NORTH AMERICA, INC.

Turn bulb holder (1) in direction of arrow and pull out of footwell light (2).

Installation note:

Make sure bulb holder (1) is correctly seated and latched on footwell light (2).

Fig 4: Turning Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Pull bulb (1) in direction of arrow out of bulb holder (2).

Fig 5: Removing Bulb From Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.
