51 42 000 Remove and install left or right rear door trim panel

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DECORATIVE STRIP ON DOOR TRIM PANEL of rear door.

Release screws (1).

Installation note:

Tightening torque 51 42 1AZ .

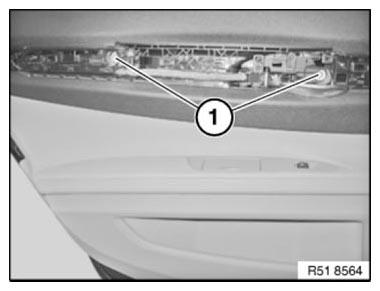

Fig 1: Identifying Rear Door Trim Panel Screws

G06885807

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip clips (1) 00 9 317 of door trim with special tool.

NOTE: Start unclipping at bottom. Damaged clips must be replaced.

Lift door trim panel out of holder.

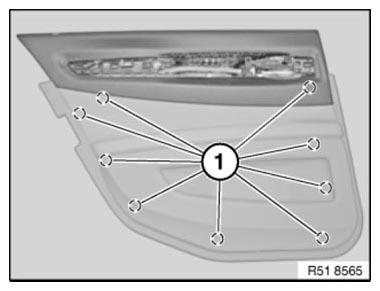

Fig 2: Identifying Rear Door Trim Panel Clips

G06885808

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage Bowden cable (1) for release lever first at counter support (2) and then at door lock (3).

Disconnect all plug connections and remove door trim panel.

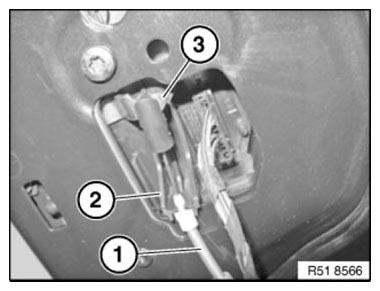

Fig 3: Identifying Bowden Cable, Counter Support And Door Lock

G06885809

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

After assembling the door trim panel proceed as follows:

Open side window
Lock with ignition key
Check for ease-of-movement on locking knob linkage
If necessary, align linkage
