51 42... Punching contour for seat memory switch into rear door trim panel

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR DOOR TRIM PANEL

Position special tool 51 4 107 or 51 4 108 on the recess in the door trim panel storage compartment (1).

Mark cutouts (2).

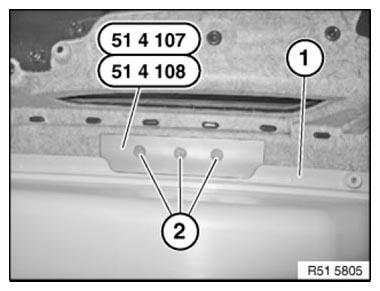

Fig 1: Positioning Special Tool (51 4 107) Or (51 4 108) On Door Trim Panel Storage Compartment

G06885801

Courtesy of BMW OF NORTH AMERICA, INC.

Use special tool 51 4 109 to punch holes on the previously marked points in the door trim panel (1).

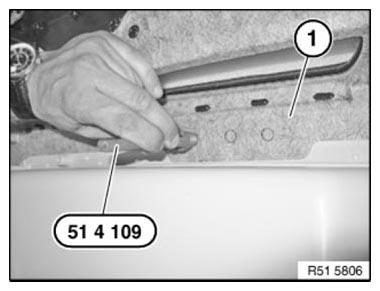

Fig 2: Punching Marked Points In Door Trim Panel Using Special Tool (51 4 109)

G06885802

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: For punching work, special tools 51 4 103 and 51 4 104 must be used as the cutting equipment.

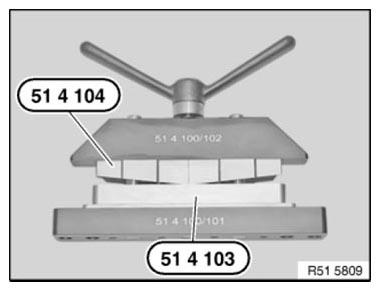

Fig 3: Identifying Special Tools (51 4 104) And (51 4 103)

G06885803

Courtesy of BMW OF NORTH AMERICA, INC.

Slide special tool 51 4 101 through holes stamped into door trim panel (1).

NOTE: Guide pins of punching tool are coded. Distortion is thus not possible.

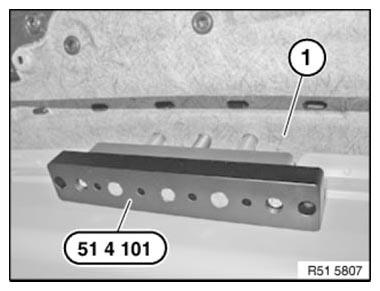

Fig 4: Sliding Special Tool (51 4 101) Into Door Trim Panel

G06885804

Courtesy of BMW OF NORTH AMERICA, INC.

Mount special tools on punching tool (1).

Compress punching tool (1) via spindle.

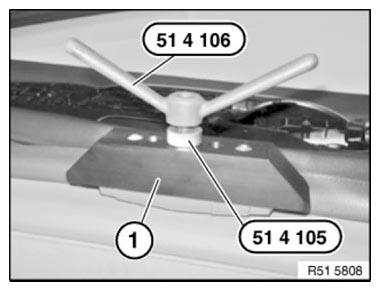

Fig 5: Compressing Punching Tool

G06885805

Courtesy of BMW OF NORTH AMERICA, INC.

Press punching remnants from rear out of punching tool using special tool 51 4 111.

NOTE: This work step is necessary to prevent the cutting surfaces from being damaged during a renewed punching operation.

Fig 6: Pressing Punching With Special Tool (51 4 111)

G06885806

Courtesy of BMW OF NORTH AMERICA, INC.
