51 45 314 Removing and installing/replacing trim for instrument panel center section
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Risk of damage!
A hard disk is installed in the Car Information Computer (CIC).
Carry out mechanical work on the CIC and adjacent components with care.
Avoid subjecting the CIC to shaking/shocks.
Necessary preliminary tasks:
- Remove RADIO - A/C CONTROL PANEL
- Remove INTERIOR AERIAL FOR COMFORT ACCESS SYSTEM
- Remove RIGHT GLOVE BOX WITH HOUSING
- Remove TRIM PANEL FOR PEDAL MECHANISM
- Remove REAR CENTER CONSOLE TRIM

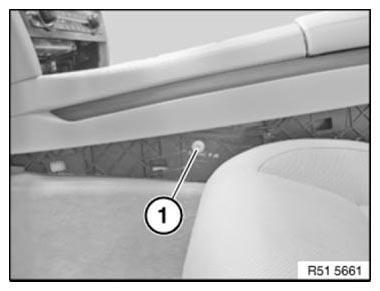

Release screws on tunnel (1) on left and right.
Tightening torque 51 16 7AZ .

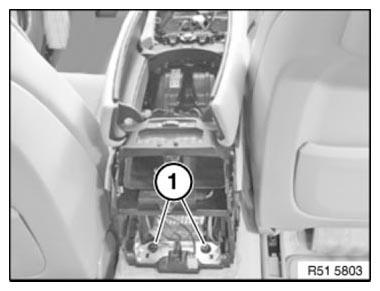

Release screws (1).
Tightening torque 51 16 4AZ .

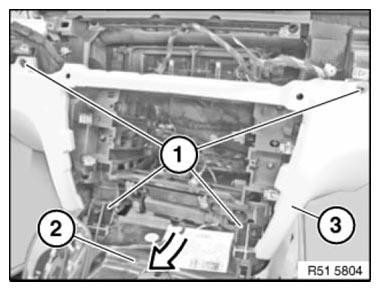

Release screws (1).
Slide center console (2) in direction of arrow towards rear.
Remove center trim for instrument panel (3).
Installation note:
Make trim for instrument panel center section (3) is correctly seated.
