51 45 184 Removing and installing/replacing trim panel for pedal assembly (US only)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Read and comply with SAFETY REGULATIONS for handling airbag modules and pyrotechnical belt tensioners.

IMPORTANT: Operations on pyrotechnical devices may only be carried out by authorized experts.

Improper, unauthorized operations may result in serious dangers.

Unauthorized persons are strictly prohibited from performing any operations on this system.

Clamp off BATTERY LEAD FROM NEGATIVE CONNECTION POINT

US only:

Release screws (1).

Installation note:

Replace screws.

Tightening torque 51 45 4AZ .

Release screw (3).

Fold back console trim (4).

Lower panel (2) slightly and disconnect plug connections behind.

Remove trim (2).

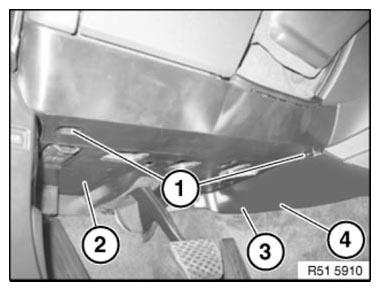

Fig 1: Identifying Back Console Trim, Lower Panel And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
