51 16 366 Removing and installing/replacing right glovebox with housing

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove upper instrument panel storage compartment. 5145460 REMOVING AND INSTALLING/REPLACING UPPER INSTRUMENT PANEL STORAGE COMPARTMENT .
Remove TRIM PANEL FOR PEDAL ASSEMBLY .
Remove USB INTERFACE CONNECTING SOCKET

Release screw (1) on glovebox (2) at top.

Tightening torque 51 16 16AZ .

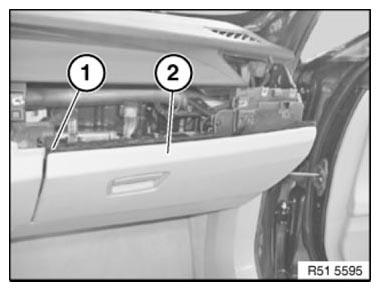

Fig 1: Identifying Glovebox And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on glovebox (2) at bottom.

Tightening torque 51 16 16AZ .

Remove glovebox (2) in direction of arrow.

Disconnect plug connection behind.

Replacement:

Remove GLOVEBOX LIGHT

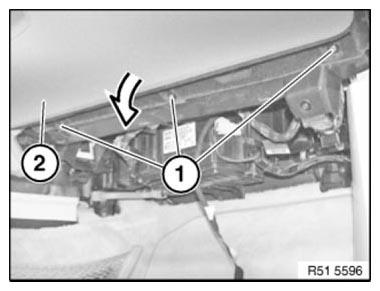

Fig 2: Removing Glovebox

Courtesy of BMW OF NORTH AMERICA, INC.
