51 16 163 Removing and installing/replacing rear center console cover
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Move front seats forwards
- Remove SIDE TRIM PANELS ON CENTER CONSOLE

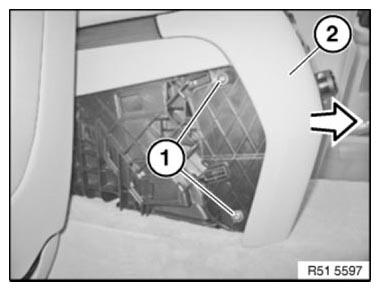

Release screws (1) on left and right sides.
Detach rear center console cover (2) in direction of arrow.
Unlock plug connections behind and disconnect.
Replacement:
- Remove fresh air grille in rear passenger compartment. See REMOVING REAR COMPARTMENT FRESH-AIR GRILLE (BASIC A/C SYSTEM) or REMOVING REAR CABIN FRESH-AIR GRILLE (HIGH A/C SYSTEM) .
- Remove REAR A/C SYSTEM CONTROL PANEL
- Remove LOWER REAR CENTER CONSOLE COVER
